Micro Swiss MK10 All Metal Hotend Kit

Micro Swiss MK10 All Metal Hotend Kit

$ 37.75 - $ 37.75
$ 37.75
$ 37.75
$ 37.75 - $ 37.75
$ 37.75
SKU

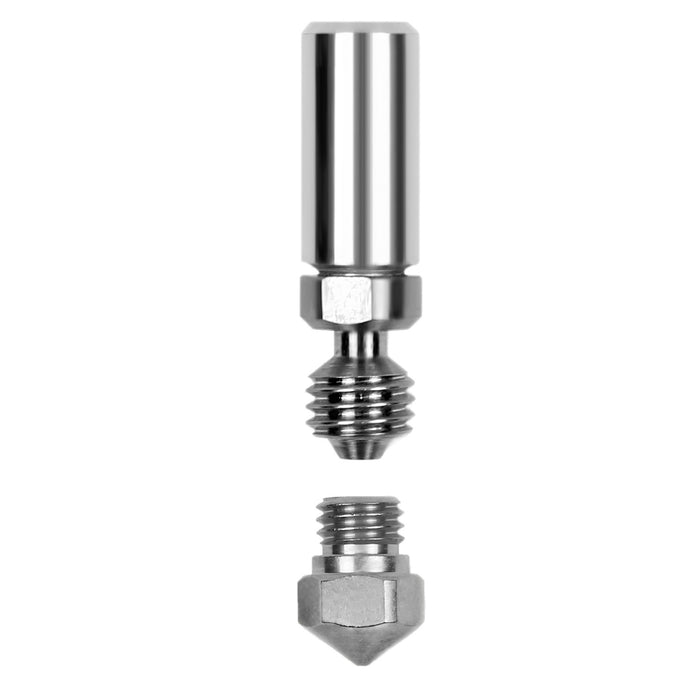

This is an all metal hotend upgrade kit for MK 10 style extruders. Thermal barrier tube is made from 2 different materials. The lower thermal break is made from stainless steel, and the colder upper part is made from aluminum. Stainless steel was used for thermal break because it offers low thermal conductivity, and aluminum was used for the upper portion because it has a lot better thermal conductivity, to carry away any heat from the filament. All metal hotend will let you print at much higher temperature than possible with original PTFE lined one. Another benefit of an all metal hotend design is more consistent melt chamber control. During slow extrusion rate, in PTFE lined hotend, transition zone from solid to molten plastic tends to creep upward creating more stringy prints. With all metal design a transition zone is always constant, being located right at the heat break. With fast extrusion rate, PTFE tube doesn't have enough thermal conductivity to properly melt all the plastic coming out. On MK10 extruders that limitation happens around 60 mm/s, depending on nozzle size. All metal hotend solves this problem, plastic is surrounded by thermally conductive nozzle throughout its length.

Orifice size available: .2mm, .3mm, .4mm .5mm, .6mm, .8mm, 1mm, 1.2mm

Made in USA by Micro Swiss

Fits
  • FlashForge Creator Pro
  • FlashForge Creator X
  • FlashForge Dreamer
  • QIDI TECH I
  • Dremel 3D20
  • ​PowerSpec 3D Pro​
  • PowerSpec 3D X
  • PowerSpec Ultra 3D Printer
  • ​Wanhao Duplicator 4S
  • Wanhao Duplicator 4X
  • Wanhao Duplicator 9 (D9)
  • Wanhao i3
  • Monoprice Maker Select 3D Printer v2
  • Cocoon Create 3D Print
What's in the box
  • 1 Plated Brass Wear Resistant Nozzle
  • 1 Thermal tube
  • 1 Thermal compound
    Installation

    Installation Instructions for dual extruder - PDF

    Installation Instructions for single extruder with redesigned cooling block - PDF

    Installation Instructions by Joel the 3D Printing Nerd on Wanhao i3 - Video

    Extra Nozzles

    Brass Plated MK10 All Metal Nozzles

    A2 Hardened tool steel MK10 All Metal nozzles

      Choose a Nozzle Size

      Customer Reviews

      Based on 20 reviews
      85%
      (17)
      0%
      (0)
      15%
      (3)
      0%
      (0)
      0%
      (0)
      J
      JMH
      works great but needs a recess for the set screw so it doesn't stick in the heat block

      works as expected, but the original flashforge one has a recessed area where the set screw goes because after tightening the set screw it scars the tube. Then when you try and remove the heat tube the scar on the tube can cause it to get stuck in the heat block making it unusable. Had to replace my heat block because of this. In the photo you can see the scar on the other one and the recessed area on the original. If you use these you might want to file down the business end of the set screw so it won't dig into the tube.

      User picture
      W
      William R. Potter

      Micro Swiss MK10 All Metal Hotend Kit

      X
      Xavier DIDOUH
      Matériel de qualité

      Bonne adaptation sur ma Flashforge dreamer. Les résultats d’impression sont bien mieux qu’avec le tube PTFE avec de l’ABS et du PETG. La dissipation thermique se fait bien et ne se diffuse pas trop dans la partie supérieur de l’extrudeuse. Il me manque encore quelques testes pour trouver le réglage de rétraction. J’ai profité aussi et remplacer les blocs support, tout c’est bien adapté.

      M
      Matt Walston
      Great service and nice hardware

      The good folks at Micro Swiss helped me find the right hot end for my old Qidi X-pro. Installation was easy and it works great. (Also, some folks say they have problems printing PLA with the all-metal hot ends. I have had no problems at all.)

      J
      Joseph Mathiau
      Micro Swiss always coming out on top.

      As usual no issues. Ordering is easy. Shipping is quick and everything arrives packed well and good condition. Even get a sticker!! Prices are a bit high but the quality is good and times are tough.
