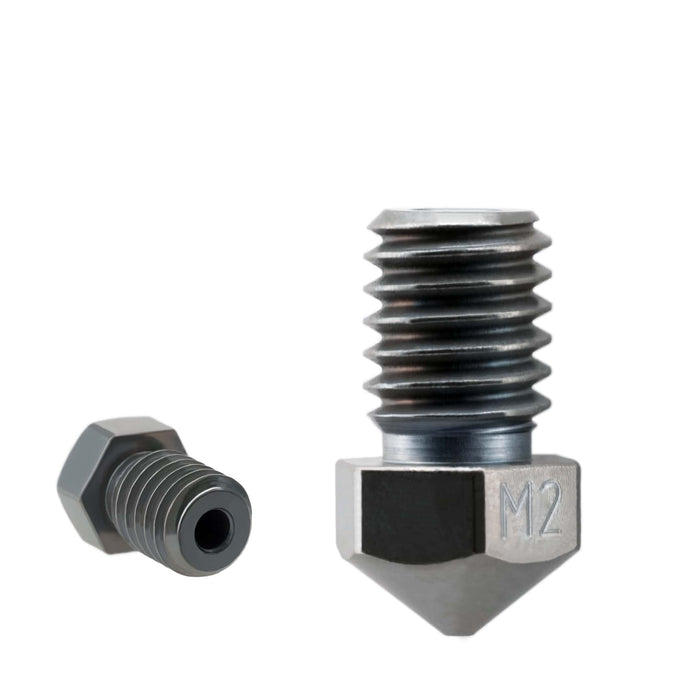

M2 Hardened High Speed Steel Nozzle RepRap - M6 Thread 1.75mm Filament

Original price $ 21.99 - Original price $ 21.99
Original price $ 21.99
$ 21.99
$ 21.99 - $ 21.99
Current price $ 21.99

The M2 nozzles are designed for high temperatures, abrasion resistance and with superior non-stick properties. Nozzles are machined from M2 high speed steel, hardened and tempered to 68 HRC, plated with Electroless Nickel Plating, and coated with WS2 coating.

The M2 nozzle can operate up to 450°C without losing the hardness.

M2 Hardened High Speed Steel:
68 HRC

Electroless Nickel

Plating Hardness:
70-73 HRC

WS2 coating

Coefficient of friction: 0.035

Orifice size available: .4mm, .6mm, .8mm

Made in USA by Micro Swiss

Limited lifetime warranty against wear

  • All printers with a E3D V4 / V5 / V6 1.75 Hotend
  • Prusa i3 MK2 / MK2S / MK3 / Mini
  • Anycubic
  • Threads: M6x1.0
  • Thread length: 7.5mm
  • Overall length: 13mm
Choose a Nozzle Size

Customer Reviews

Based on 3 reviews
Josh Dean
Great Nozzle these are all we use now

We are printing in Carbon infused PETG and we love these nozzles

Scott Wilkinson
Precision nozzle

Very happy with the precision of the nozzle. It laid down half a kg of glow filament right of the gate like magic. However, it is worth noting that the thermal characteristics are quite a bit different, and I wish Microswiss had better documentation on this, better explaining the difference between the A2 and M2. The M2 requires a lot of extra heat! Up to 25C in some filament I tried.

Nickalaus C
Great nozzles as always.

Microswiss has consistently delivered the highest quality hardened nozzles. I purchased some of the M2 nozzles to print CF ABS, and I have had great success. I recommend these to anyone!
