Micro Swiss Direct Drive Extruder for Linear Rail System

Original price $ 57.75 - Original price $ 99.75
Original price $ 99.75
$ 99.75
$ 57.75 - $ 99.75
Current price $ 99.75
SKU M2605

Micro Swiss Direct Drive Extruder configured for Linear Rail System

  • No modification required, simple plug and play
  • No printed brackets or sandwiches

Features:

  • Dual-drive train
  • Hardened tool steel, CNC precision cut gears
  • Adjustable filament grip
  • Easy filament loading
  • Short, highly constrained filament path
  • Prints flexible filaments with high speed and accuracy
  • Outstanding extrusion control
  • Lightweight aluminum body


Fits
  • Printers with MGN12 Linear Rail with MGN12H Carriage Block
  • Only for printers with bottom belt mounting position
What's in the box
  • Stepper motor, Linear Rail and Carriage Block are NOT included
  • 1x Micro Swiss All Metal Hotend (If option selected)
  • 1x Main Extruder body
  • 1x Linear Rail mounting bracket
  • 1x Extruder Lever
  • 1x Spring Pin
  • 1x Spring
  • 2x Gears
  • 1x Tension Knob
  • 1x Shoulder Pin
  • 1x Extension Cable
  • 3x M3 x .5 x 6mm Motor Mounting Screws
  • 4x M3 x .5 x 8mm Linear Rail bracket mounting screws
  • 2x M3 x .5 x 10mm Screws
  • 2x M3 x .5 Nuts
  • 5x Zip Ties
  • 1x Printed Bracket
  • 1x Beveled Capricorn Liner
Installation

Instructions Instructions - PDF

Installation Instructions By Daniel at ModBot - Video

Extra Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

    Hotend Option: With Hotend

    Customer Reviews

    Based on 20 reviews
    75%
    (15)
    10%
    (2)
    5%
    (1)
    0%
    (0)
    10%
    (2)
    B
    Bill
    Great product!

    I really like this carriage. Well designed and machined. I was looking to replace my rollers on my Geeetech A30 which is pretty worn out. The original carriage is non-standard, so a complete replacement was needed. I also wanted a direct drive.
    Installing the linear rail was easy. The down side was the home sensor didn't work out, but I have a Bigtreetech Mini board that supports sensorless homing and that works pretty well so far. I also had to replace the belt since it was a little too short.
    I found a Satsana fan shroud remix I really like on Thingiverse. It uses a 5015 blower which works great! It will print in air for a couple inches without any issues. I did have to cut off the cable support on the one I printed. There are a bunch of remixes that I'll look through now that I can print again.
    Note - if you only have 1 printer, make sure you have everything you need before you start!
    I have a Creality Spider 3.0 hotend. I had to file out behind the hotend a bit for clearance. Like a mm. Just an FYI. I'm sure a normal one would work fine without modification.
    I have a second printer that I'm starting to rebuild and I'm ordering another. Very happy!

    b
    b.s.
    Excellence.

    I first purchased the Direct Drive extruder kit and all metal hotend for my Ender 3V2. I used it for a number of months with a (few) Satsana fan setups and loved it. Following that, I upgraded to a linear X rail at roughly the same time that MicroSwiss (unbeknownst to me) dropped their extruder kit for linear rails. I purchased this second extruder kit and my device feels "complete" now. I think I've been using it for 1.5-2 years now and would do it all over again if I needed to...or if I bought a new printer. In that time I've been through a few heater blocks (lackadaisical maintenance effort, my fault), a handful of silicone socks (they're wear parts), and a few motor gears (wear parts plus abuse/misuse). I keep a box of spare parts and I'm good to go if a crisis arises. I've successfully printed a variety of plastics, TPU included, without issue. These hotends and extruder kits are somewhat more expensive then the flimflam you could get elsewhere, but they are worth every penny and will last you much longer then the other "less expensive" options would.

    E
    Eric Jamieson
    Linear rail direct drive

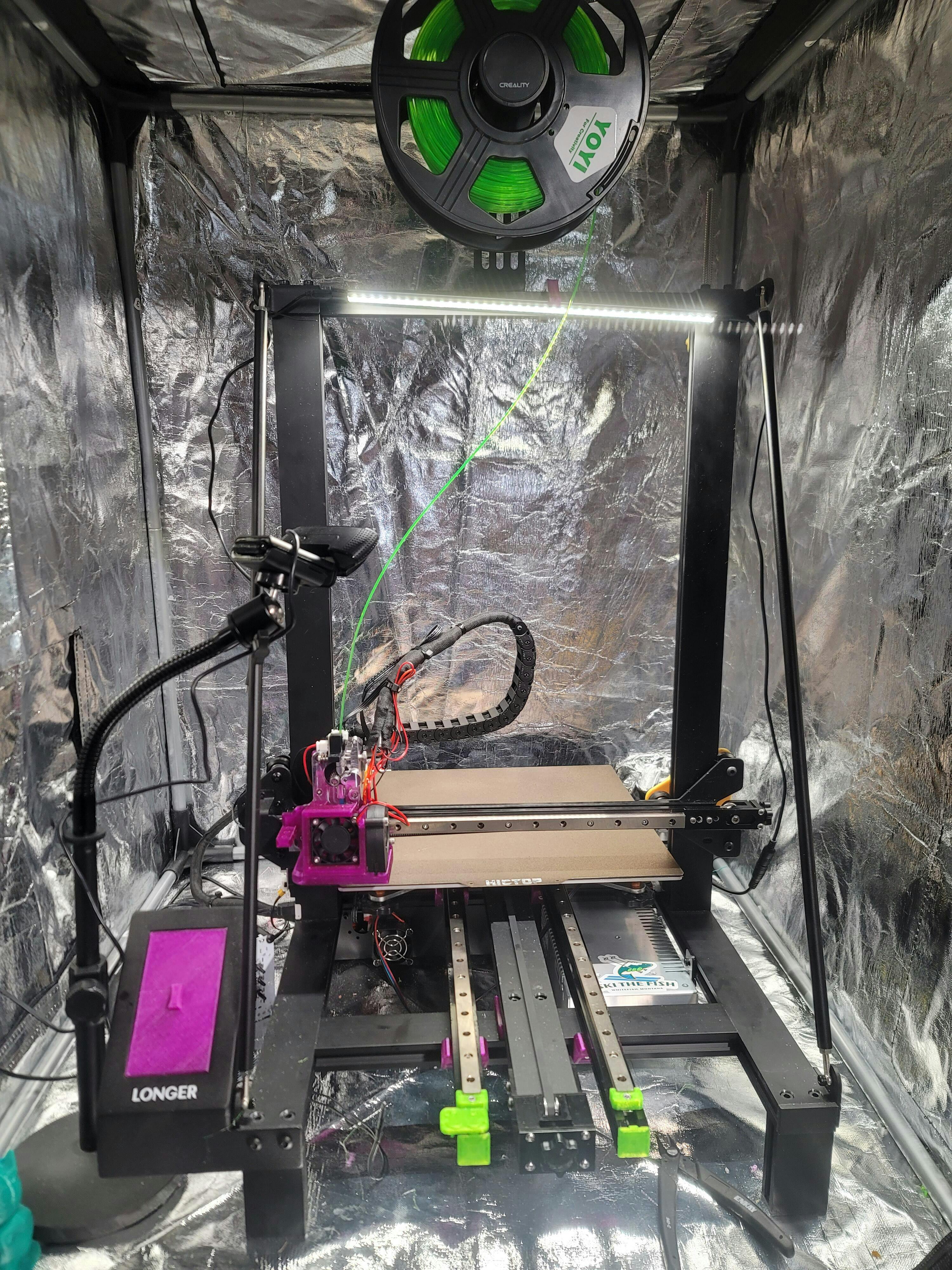

    I recently installed a direct drive on my longer lk5, so far its been working wonderfully. It took some effort to install because of the way the lk5 gantry was built but I don't regret it.

    G
    Gg

    Great

    M
    Matthew Erdman
    Direct Drive Extruder

    It's been working great. I've been using the Satsana fand duct. Still need to get better fans on it though because my stock ender 3 fans are making noise now. Unfortunately I can't remove my previous review. The error was on my part, not MicroSwiss.
