All Metal Hotend Kit for Creality CR-10s PRO / CR-10 Max

Original price $ 63.50 - Original price $ 63.50
Original price $ 63.50
$ 63.50
$ 63.50 - $ 63.50
Current price $ 63.50
SKU Part Number: M2591-04

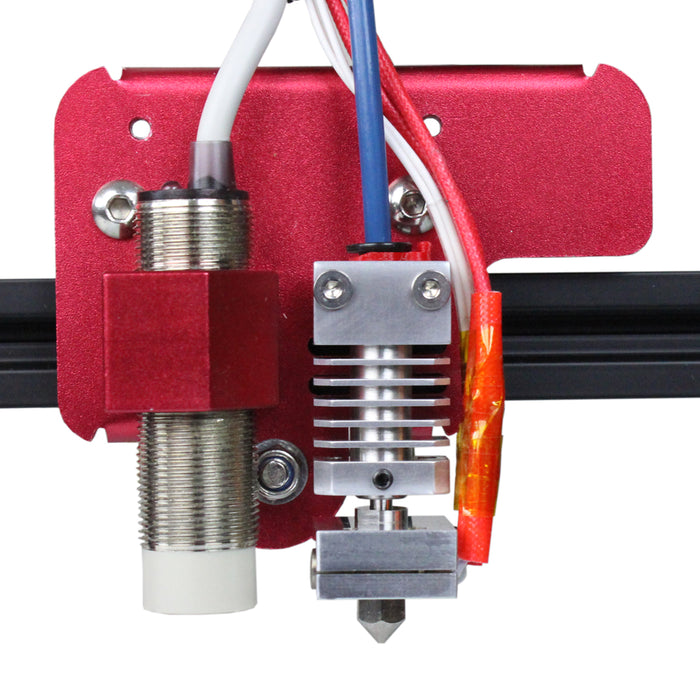

This is an All Metal Hotend Kit for CR-10s PRO / CR-10 Max Printers.
This is a drop in All Metal Conversion kit for the CR-10s PRO / CR-10 Max Printers. It requires absolutely zero modification to your printer to install. Our uniquely designed cooling block eliminates need for a thermal tube. By not having a separate thermal tube inside the cooling block, it allows for faster heat dissipation.
The thermal heat break is made from Grade 5 Titanium Alloy to provide excellent thermal isolation between the heater and the cooling block. Titanium is extremely strong material and offers almost 3x lower thermal conductivity than stainless steel, creating more defined melt zone.
CNC Machined and Assembled in USA

  • CR-10s Pro
  • CR-10s Pro V2
  • CR-10 Max

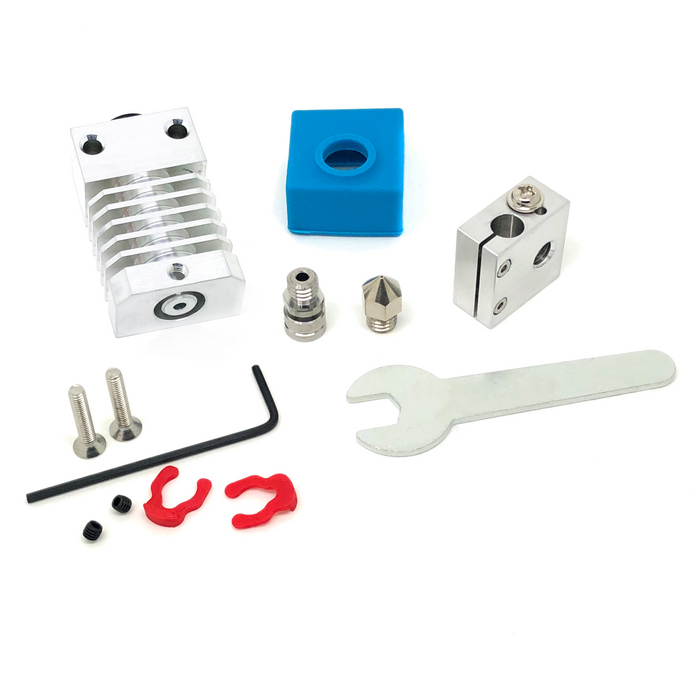

What's in the box
  • Aluminum Cooling Block
  • Grade 5 Titanium Heat Break
  • Aluminum Heater Block
  • Brass Plated Wear Resistant MK8 .4mm Nozzle
  • Silicone Sock
  • Hardware kit

Installation Instructions - Video

Extra Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

Customer Reviews

Based on 22 reviews
Missing parts

The kit is missing two screws that set the tension for the thermistor. I picked the hot end up while I was visiting family in the US and it is too expensive to return overseas. I shouldn't have to check the kit to see if everything is there. That's very poor quality control on the part of Micro Swiss. Getting parts where I live is extremely difficult - even screws. I will eventually get the hot end installed and see if it lives up to the hype.

Simple Design that works

I bought this hotend for spare parts. I love my MS Direct Drive. It works well and is easy to maintain. I recommend this hotend.

Brian Martinez
Fantastic Product

I was always happy with the print quality with the original Creality hot end. I already went through 3 rolls of filament and the prints are flawless. The first layer sticks so much better than previously.

Adam Hocum
Excellent and easy to install

Easy to swap out and works perfectly

Tim Mace
too short

the hot end is much shorter than the factory. my blower housing hits the bed before the nozzle is even near it. i have tried many different blower housings and have the same result. the printer is completely stock and has no other modifications.

Hello Tim,
What is the part number on your box? I think you might have received the M2583-04 instead of M2591-04. If this is the case, please let us know.

Thank you
