FlowTech™ Hotend for Bambu Lab X1 and P1 Printers

Name: FlowTech™ Hotend for Bambu Lab X1 and P1 Printers
Brand: Microswiss Online Store
SKU: M3109X-00
Price: 74.95 USD
Availability: InStock

SKU

$ 74.95 - $ 164.95

$ 74.95

$ 74.95 - $ 164.95

$ 74.95

Quantity

FlowTech™ Hotend for Bambu Lab Printers

Microswiss FlowTech Hotend is designed with advanced features for optimized performance. Paired with Bondtech CHT High Flow Nozzles, this hotend delivers up to 50 mm³/sec for ultra-fast printing without compromising quality. Installation is simple and plug-and-play, allowing you to integrate it seamlessly into your Bambu Lab Printers.

Made in USA by Microswiss

Fits:

Bambu Lab X1C
Bambu Lab P1S
Bambu Lab P1P

What's in the box

1x FlowTech™ Heater Core for Bambu Lab
1x Heatsink for Bambu Lab
1x FlowTech 0.4mm Nozzle (CM2™, CHT, CM2™ CHT, DiamondBack)
2x Titanium hotend mounting screws
1x Silicon Sock
2x Fan mounting shoulder screws

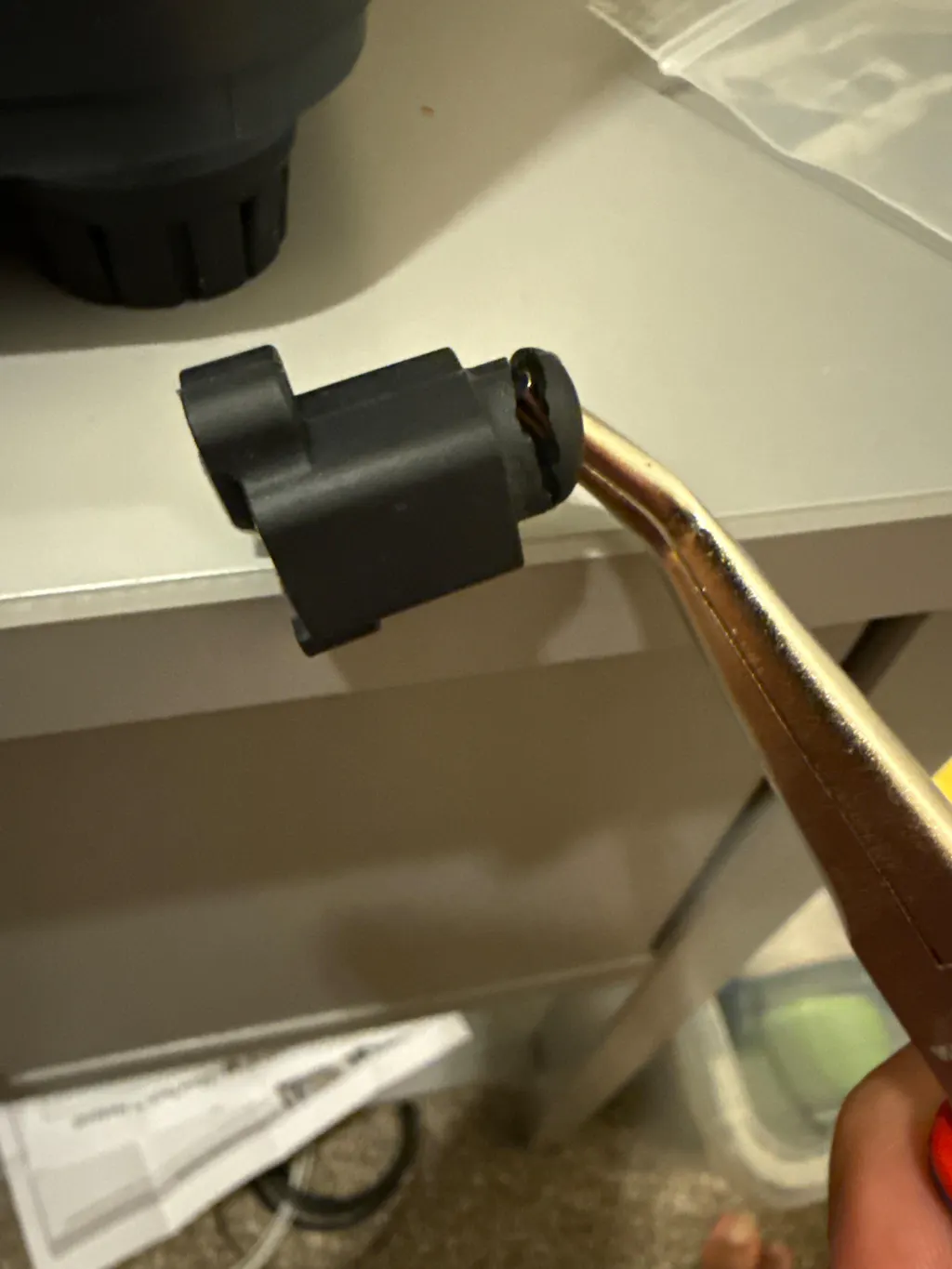

1x Printed Nozzle changing tool

Documentation

Spare Nozzles

FlowTech™ - Brass Plated Nozzles

FlowTech™ - CM2™ Nozzle

FlowTech™ - CHT High Flow Nozzles

FlowTech™ - CHT High Flow CM2™ Nozzle

FlowTech™ - DiamondBack Nozzles

Sealed Heater Core:

Unlike the original heater core, the FlowTech features a sealed heater core, providing the following benefits:

Enhanced Heat Retention: The sealed design efficiently traps heat within the core, ensuring stable and consistent printing temperatures.
Increased Durability: By protecting the heating element and thermistor, the sealed heater core reduces the risk of damage, extending the lifespan of the hotend.

CHT High Flow Performance:

An official collaboration between Microswiss and Bondtech brings the CHT High Flow nozzle to the FlowTech ecosystem. This nozzle incorporates proprietary CHT technology, specifically engineered to boost the flow rate and improve layer adhesion.

High Flow CHT
The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
Better layer adhesion
More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers

*If the CHT Nozzle option is selected

Leak-Proof Nozzle:

The FlowTech Hotend integrates the nozzle and titanium thermal break into a single, permanently sealed assembly, ensuring a leak-proof design.

Cold Nozzle Change:

Changing the nozzle on a Bambu Lab printer usually requires removing the entire hotend. However, with the FlowTech hotend upgrade, the process becomes remarkably quick and easy.

The FlowTech nozzle, integrated with a heat break, allows you to change the nozzle without preheating the hotend. With a FlowTech Hotend, nozzle changes are effortless, requiring no hot tightening and can be done with just two fingers and 3D printed nozzle changing knob.

Expanding Compatibility:

Fully compatible with the growing FlowTech ecosystem, offering a wide range of nozzle options:

Excellent Mod/Upgrade

I wanted to install DiamondBack nozzles on my P1Ps for a while and the FlowTech hotend was exactly what I wanted. Install was quick and easy and my printers have been flawless with the new hotends and nozzles. 100% recommended!

Flow tech hotend

These guys ACE it on all levels,product wise but also after sales.This is a no brainer if your up for a real upgrade on your hotend for your 3d printer.

Precision crafted hotend system for X1C

I purchased this hotend for my Bambu Lab X1C with my own money at retail pricing. I also have the Revo and stock hotends for comparison. I purchased a 0.2mm brass plated nozzle and the 0.4mm High Flow CHT CM2 hardened tip nozzle.

Prior to purchasing the Micro Swiss FlowTech hotend, I asked customer service if it would be compatible with an aftermarket cooling duct and they responded within a short amount of time, that it would be.

Positives:
+ Impeccably constructed. Very high level of quality control.
+ Proper installation documentation with tips for optimal usage.
+ Customer service is reachable.
+ Made in USA with fast shipping times
+ Multitude of nozzles sizes and material compositions available
+ Easy to swap nozzles and included 3D-printed torque wrench insures proper installation
+ Ample length of wiring to reach hotend circuit board
+ Nozzle heats quickly and evenly
+ Compatible with Biqu Panda Jet cooling duct
+ Increased flow rate

Negatives:
- Some popular nozzles were not in stock at the time of purchase. However, the email notification system when items were re-stocked was functioning properly, and I ordered them once I received notification.

Comparison to Revo:
+ 60w heater, heats very quickly and generally overshoots set temp slightly before stabilizing
+ Availability of different nozzle sizes and nozzle materials (brass, hardened metal, and diamond)
+ Prints well when filaments are tuned
+ Can be purchased from Amazon, but I ordered mine from overseas

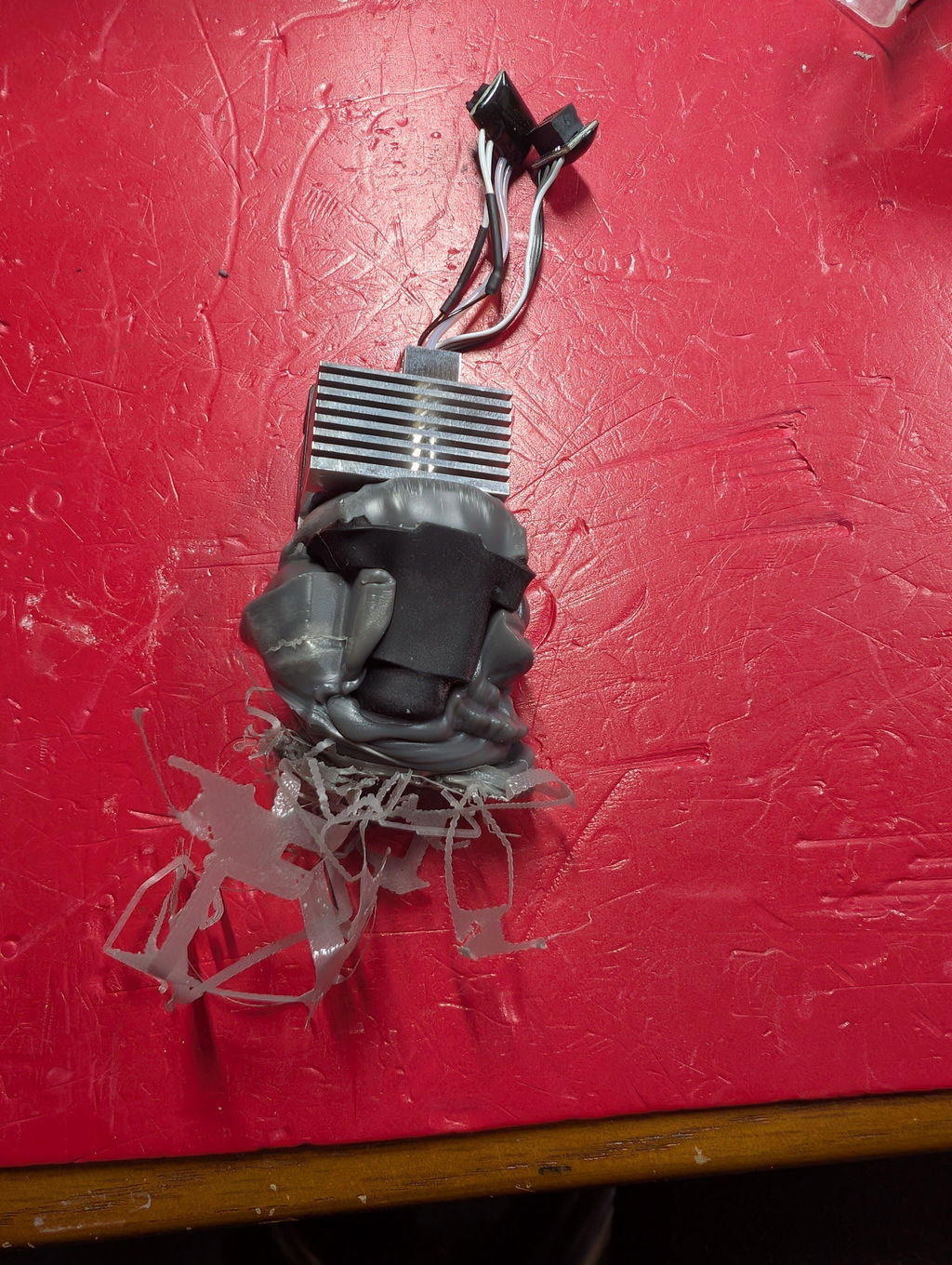

- Spring tension system for nozzle installation is not a bulletproof design and can bind if any filament happens to leak
- Wiring is very tight, with less length that factory Bambu Lab hotend components.
- Nozzle anti-stick coating on my 0.4mm hardened metal nozzle not nearly as good as expected
- z-axis and individual filament settings must be re-tuned to get best results

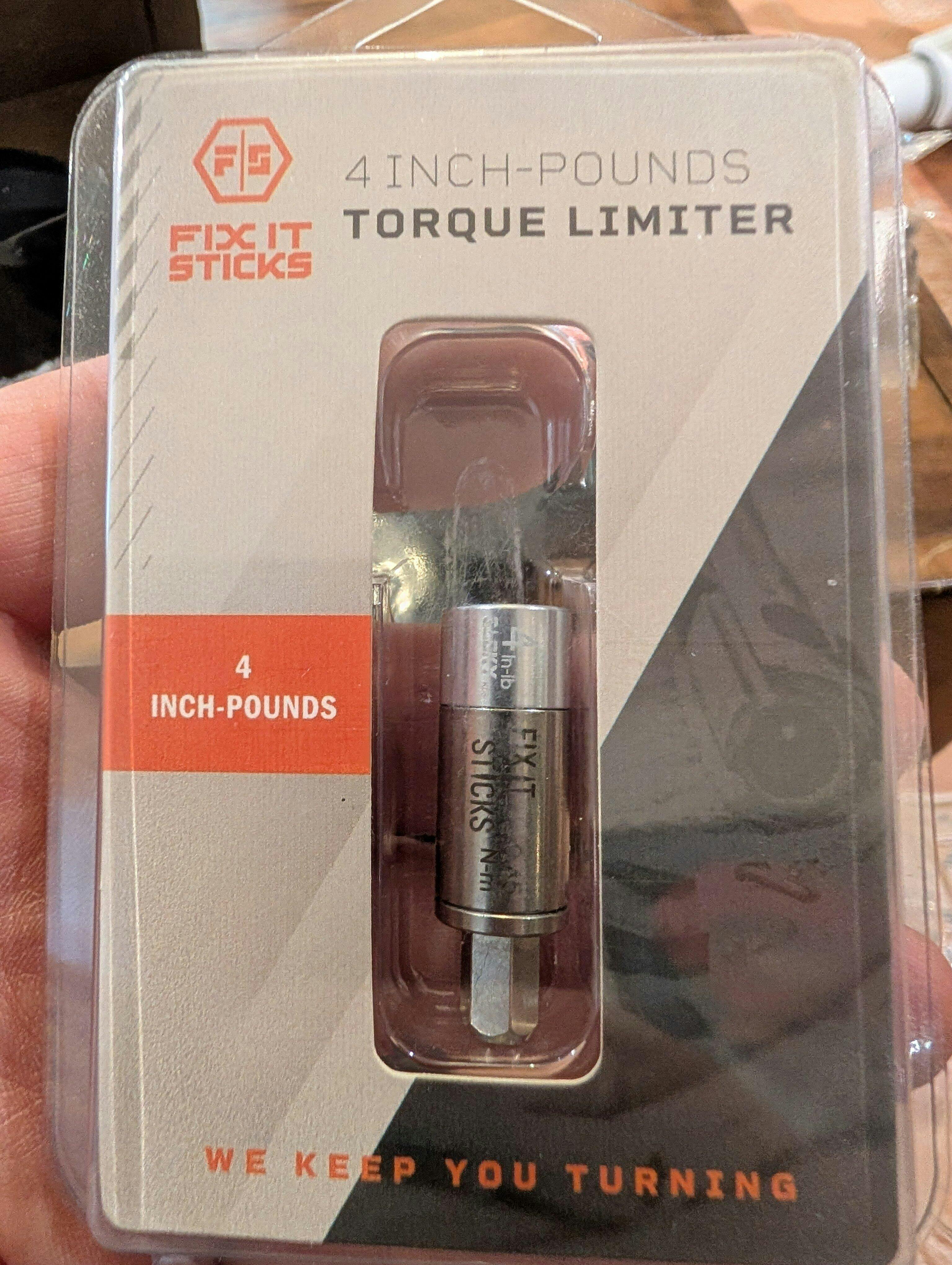

- No way of knowing proper torque when installing nozzles
- Poor to little documentation.
- Very poor customer service when asking questions.
-
I am an amateur 3D printing hobbyist and based on my use case, I would recommend the Micro Swiss FlowTech hotend to my friends and family.

Nice upgrade for my Bambu P1S

The Flowtech hotend was easy to install. It printed perfectly on the first try. A flow test using some PLA+ maxed out the speed of the test model at 36 mm3/s with no issues. Other prints have been great as well.

Also, there was an issue with the wrong spare nozzle in my order. I contacted Micro-swiss and had it resolved to my satisfaction in less than an hour. Awesome customer service!

Best update

Easy swap. Makes switching tips much easier, quicker, and more fun to work with. I made a print with a .2mm, and then easily and quickly switched to the .4mm for a larger print. Worth the investment.

1 2 3
