Micro Swiss Universal NG™ REVO Direct Drive Extruder

This is an universal NG™ REVO Direct Drive Extruder that can be custom mounted on any printer. It will require a custom mounting plate and a fan shroud.

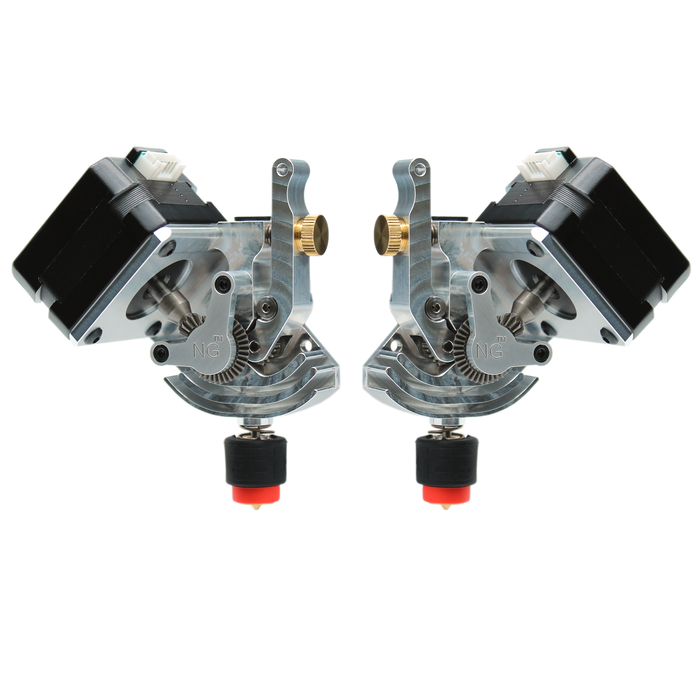

The Extruder is avoidable in Right Hand and Left Hand Configurations.

STEP File is available for mounting reference.

Right Hand Configuration - Download

Left Hand Configuration - Download

Features:

• Lightweight
• 3:1 Gear ratio
• Adaptable to wide range of 3D Printers
• Hardened steel, precision cut Dual Gear drive
• Bevel Gear system allows a low overhang extruder mount
• Seamless integration with E3D Revo Hotend
• Fast and Easy nozzle swaps

Made in USA by Micro Swiss

What's in the box

• 1x Master Extruder Assembly
• 1x LDO Stepper motor
• 1x Custom extension cable
• 1x Revo Hotend assembly
• 1x Revo CR HeaterCore 24V or 12V
• 1x Revo HeaterCore Spring
• 1x 0.40mm Brass Revo Nozzle

Hardware:

• 5x Zip Ties
• 4x butt splice connectors
• 3x M3-0.50 x 6mm Button Head Socket Cap Screws

Downloads

• Printable shrouds and brackets


• g-code for e-steps


• Right Hand Configuration - STEP File
• Left Hand Configuration - STEP File
