Micro Swiss NG™ Direct Drive Extruder for Creality CR-10 / Ender 3 Printers

Micro Swiss NG™ Direct Drive Extruder for Creality CR-10 / Ender 3 Printers

$ 119.95 - $ 119.95
$ 119.95
$ 119.95 - $ 119.95
$ 119.95
SKU M3201

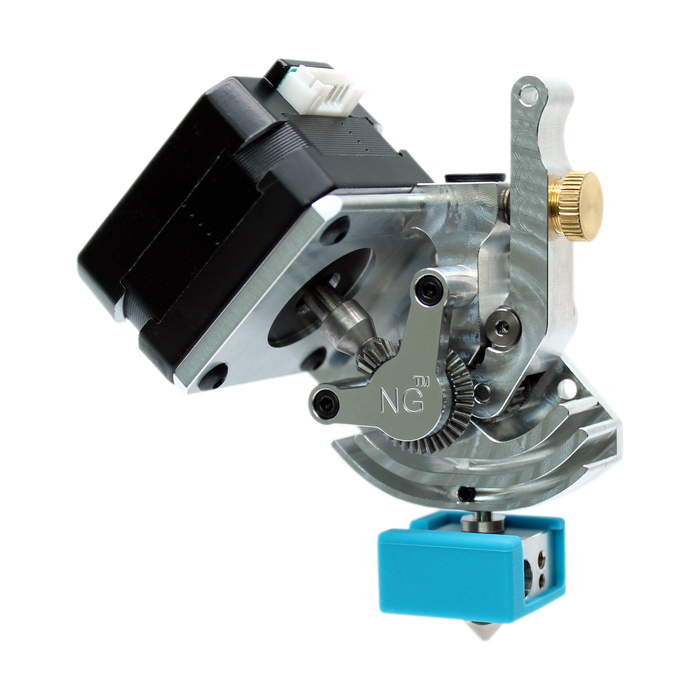

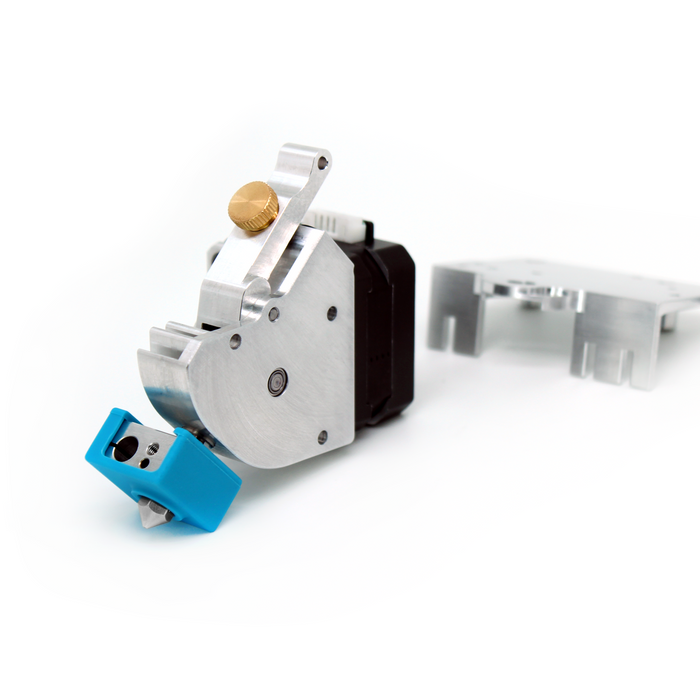

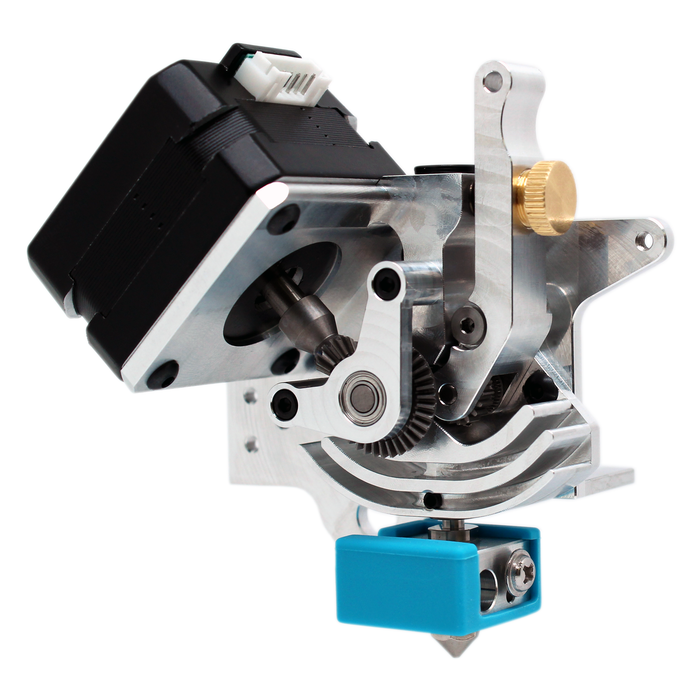

Micro Swiss NG™ Direct Drive Extruder

This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.

With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design.  This further increases system rigidity.

Features:

  • Lightweight
  • 3:1 Gear ratio
  • Adaptable to wide range of 3D Printers
  • Hardened steel, precision cut Dual Gear drive
  • Industry shortest, highly constrained, TwinClad XT™ plated filament path
  • Bevel Gear system allows a low overhang extruder mount
  • Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

Fits

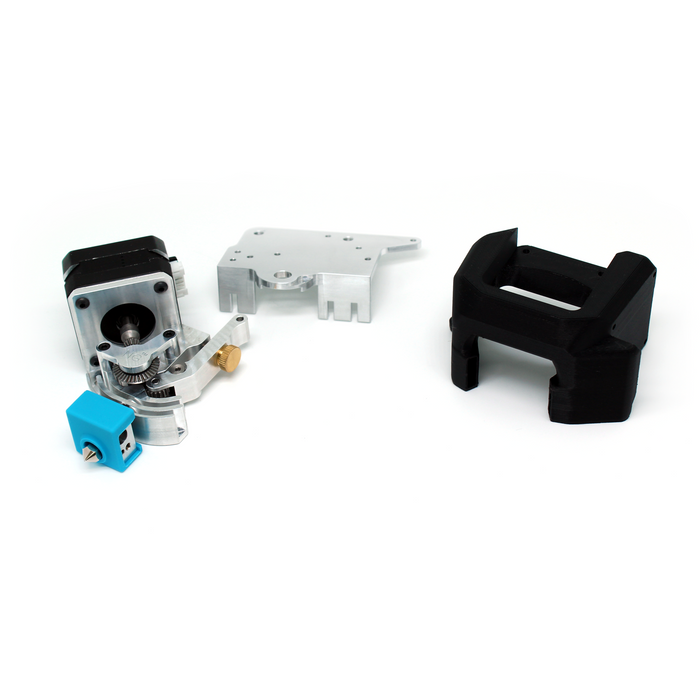

What's in the box
  • 1x Master Extruder Assembly

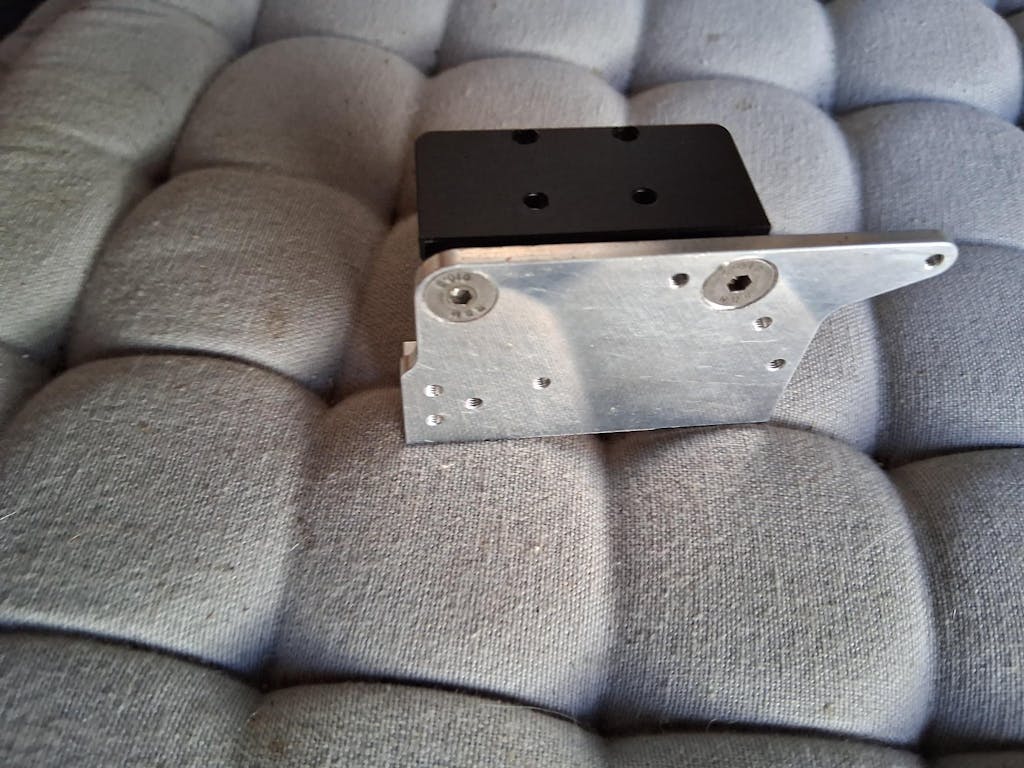

  • 1x Adaptation plate
  • 1x Stepper motor

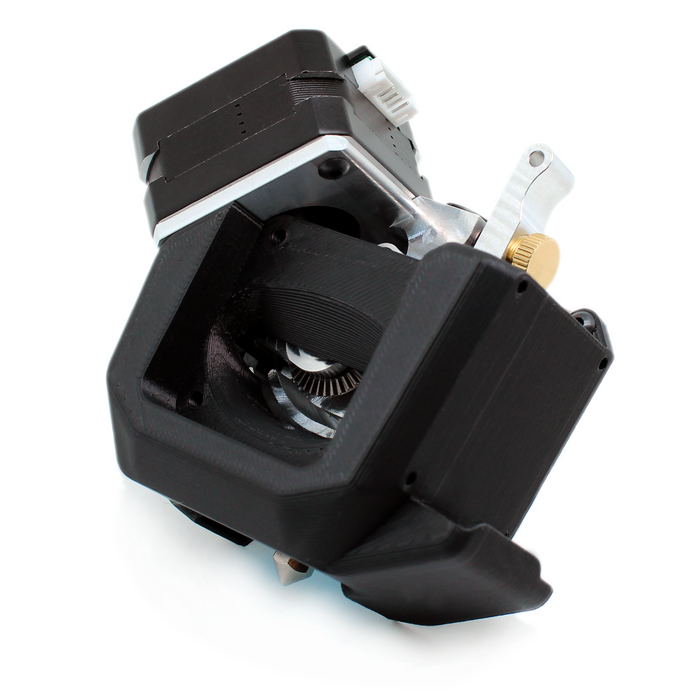

  • 1x Fan Shroud
  • 1x Custom extension cable
  • 1x Hotend assembly

Hardware:

  • 1x Eccentric nut
  • 1x M5 x .8 x 30mm CAP SCREW
  • 1x 5mm ID 10mm OD Washer
  • 1x M5 x .8 Nylon Lock Nut
  • 2x M5 x .8 x 20mm Nylon Patch CAP SCREWs
  • 4x M2.2 x 8mm Thread Forming Screw for Plastic
  • 4x M3 x 12mm Thread Forming Screw for Plastic
  • 1x 7mm spanner wrench
  • 1x 1.5mm Allen wrench
  • 5x Zip Ties
Installation

PDF:
Installation Instructions - PDF

Video Guides:

By Daniel at ModBot

By John at Tripod’s Garage

By Chris at Chris's Basement

By Chris at Embrace Making

Downloads
Spare Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles


Customer Reviews

Based on 148 reviews
90%
(133)
7%
(10)
1%
(1)
0%
(0)
3%
(4)
U
U.C.L.
Very impressive

Going from stock Ender 3 hotend/extruder to this. Very impressive results so far. Nice kit and easy install.

M
Mark
NG Direct Drive

No issues and working flawlessly.

W
Wayne Manion
The parts that come in the box are great...

The BL Touch bracket model that Micro Swiss provides for you to print yourself is not very good. It is very flexible and does not provide a way to attach nuts to the machine screws that hold the probe to the bracket. Honestly for the premium price and the popularity of BL Touch on Ender 3 printers a metal probe bracket should probably be in the box.

P
Patrick Allison
Great product, works with Ender 3 v2 Neo, with some tweaks

Microswiss don't recommend this product for the V2 Neo, but I'm running it on one right now, at up to 290 degrees, prints everything I throw at it.

The only problem with the V2 Neo is the X axis limit switch. Print a replacement limit switch cover off Thingiverse, there's one that's meant for the V2 Neo, which actually has a completely different switch to other Ender 3 models. It moves the limit switch to where it typically is on a standard Ender 3. Then just program your offsets using gcode commands to tell the printer where to put the nozzle and you're good to go. I recommend flashing your firmware with the Pro Firmware off Github. It unlocks so many features and of course takes away that pesky temperature limit. And you can download the appropriate binery for you printer and with the features you want, stick it on your SD card and plug it straight in to your printer if learning how to compile Marlin isn't your thing. It's so easy, and really allows you to take advantage of this excellent hotend/extruder assembly.

A
Aaron Turner
Works well

I run Klipper and am having trouble with dialing in the flow for this. Klipper uses rotation distance so you can’t set your steps to 400 like the instructions say. Online forums help. Need Klipper option for firmware
