Micro Swiss NG™ Direct Drive Extruder for Creality CR-10 V2 / V3

Original price $ 119.95 - Original price $ 119.95
Original price
$ 119.95
$ 119.95 - $ 119.95
Current price $ 119.95
SKU M3206

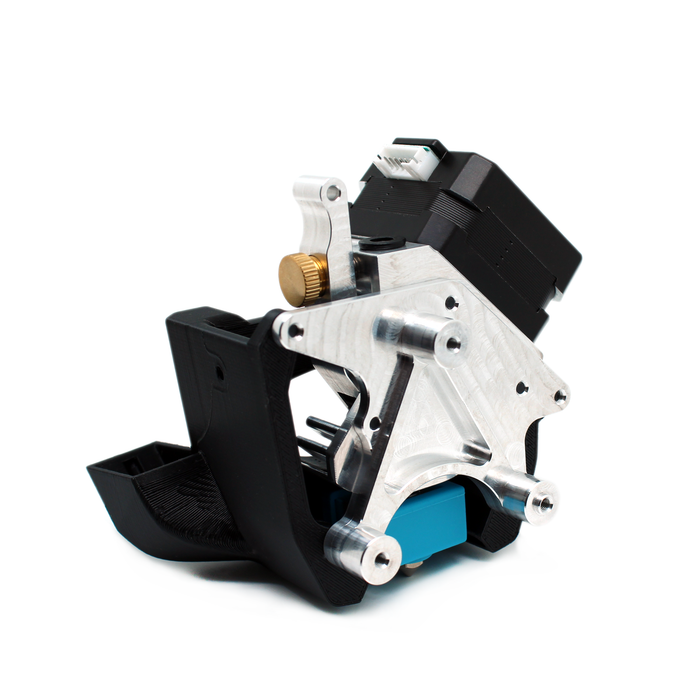

Micro Swiss NG™ Direct Drive Extruder

This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.

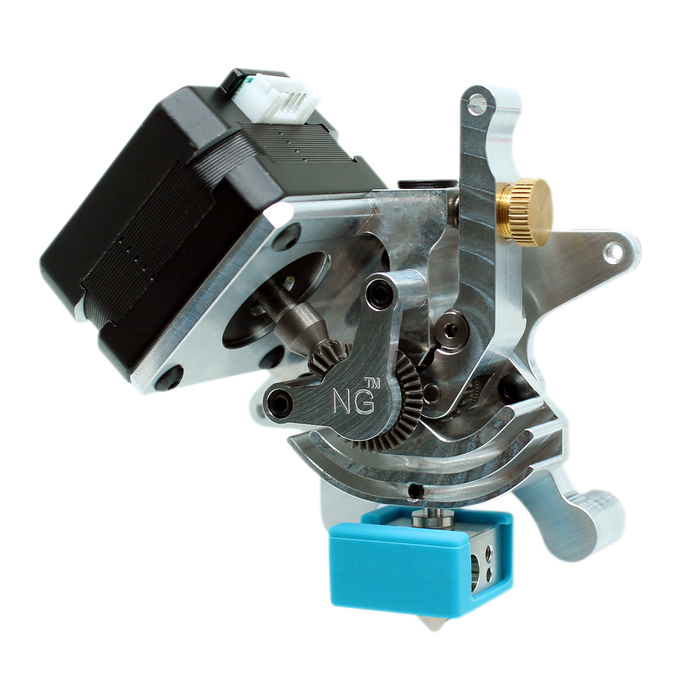

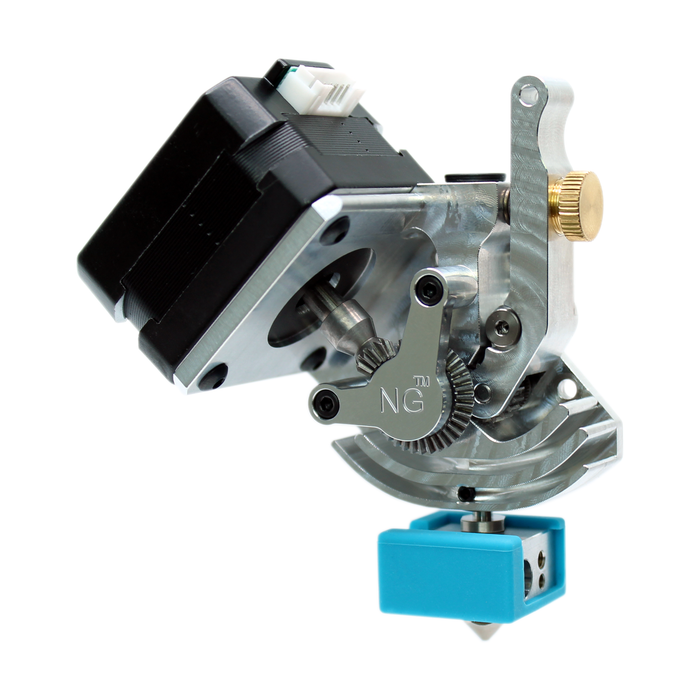

With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design.  This further increases system rigidity.

Features:

  • Lightweight
  • 3:1 Gear ratio
  • Adaptable to wide range of 3D Printers
  • Hardened steel, precision cut Dual Gear drive
  • Industry shortest, highly constrained, TwinClad XT™ plated filament path
  • Bevel Gear system allows a low overhang extruder mount
  • Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

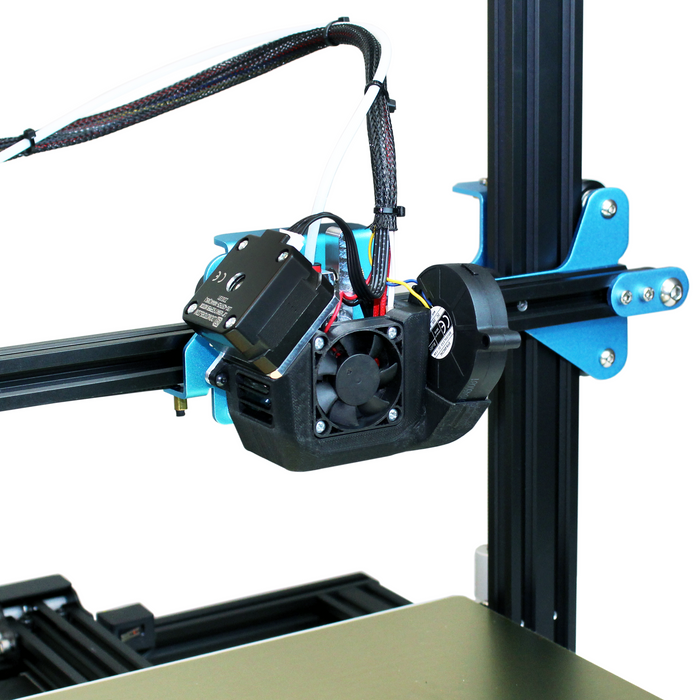

Fits
  • CR-10 V2
  • CR-10 V3

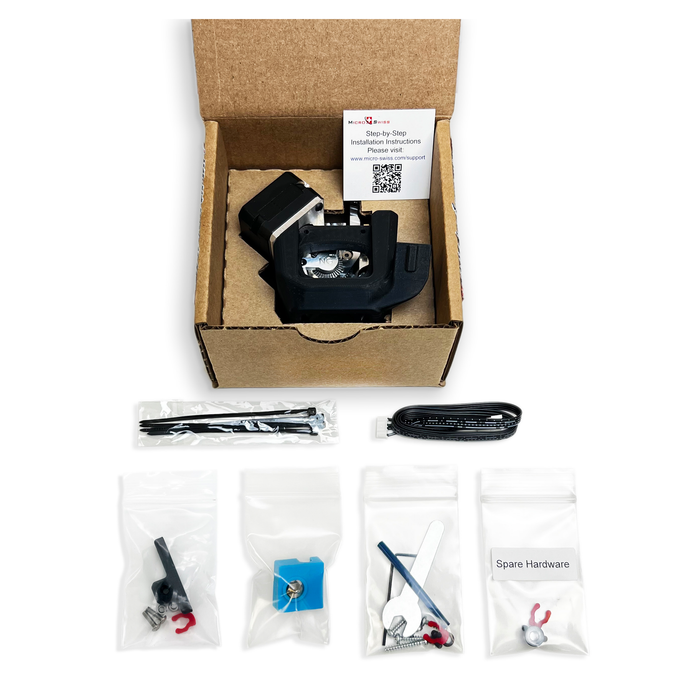

What's in the box

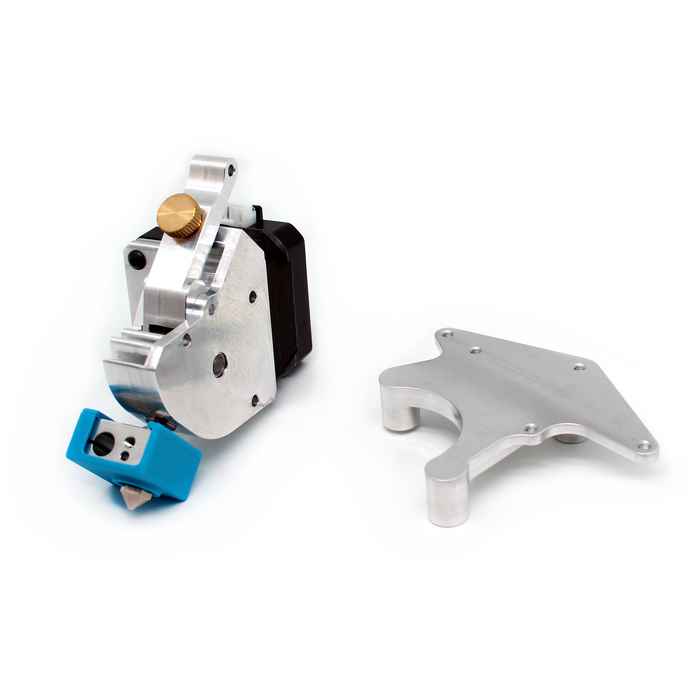

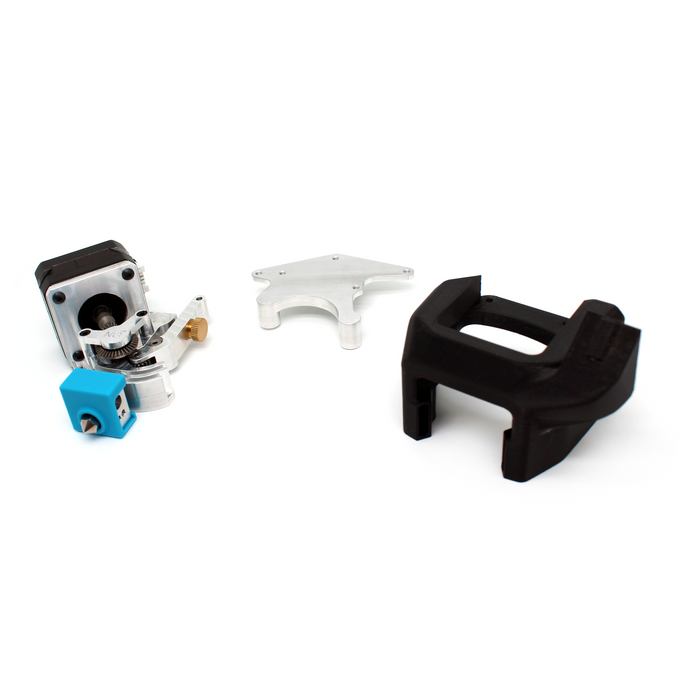

  • 1x Master Extruder Assembly
  • 1x CR-10 V2 / V3 Adaptation plate
  • 1x LDO Stepper motor - Motor Drawing

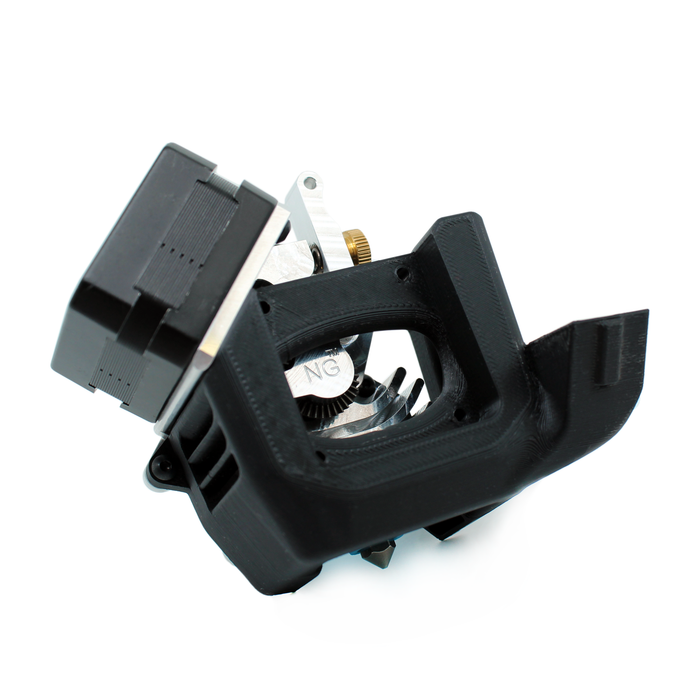

  • 1x Fan Shroud
  • 1x Custom Extension Cable
  • 1x Hotend assembly

Hardware:

  • 1x M3 x 20mm Thread Forming Screw for Plastic
  • 4x M3 x 12mm Thread Forming Screw for Plastic
  • 2x M3 x 6mm Bottom Head Screws
  • 1x 7mm spanner wrench
  • 1x 1.5mm Allen wrench
  • 5x Zip Ties
  • 1x 3D Printed PTFE Tube Bracket
  • 1x Bowden Coupler
  • 1x 3D Printed C-clip
  • 2x 16mm M3 Screws
  • 2x M3 Nuts

Installation

Installation Instructions - PDF

Downloads
Spare Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

CM2™ - MK8 Nozzle
