Micro Swiss NG™ Direct Drive Extruder for Creality Ender 6

Original price $ 119.95 - Original price $ 119.95
Original price
$ 119.95
$ 119.95 - $ 119.95
Current price $ 119.95
SKU M3205

Micro Swiss NG™ Direct Drive Extruder

This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.

With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design.  This further increases system rigidity.


  • Lightweight
  • 3:1 Gear ratio
  • Adaptable to wide range of 3D Printers
  • Hardened steel, precision cut Dual Gear drive
  • Industry shortest, highly constrained, TwinClad XT™ plated filament path
  • Bevel Gear system allows a low overhang extruder mount
  • Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

  • Ender 6
    (Not compatible with BL-Touch)
What's in the box
  • 1x Master Extruder Assembly
  • 1x Ender 6 Adaptation plate
  • 1x LDO Stepper motor
  • 1x Fan Shroud
  • 1x Custom Extension Cable
  • 1x Hotend assembly
  • 1x Printed PTFE Tube bracket


  • 4x M2.2 x 8mm Thread Forming Screw for Plastic
  • 4x M3 x 12mm Thread Forming Screw for Plastic
  • 2x M3-0.50 x 6mm Button Head Socket Cap Screws
  • 1x 7mm spanner wrench
  • 1x 1.5mm Allen wrench
  • 5x Zip Ties

Installation Instructions - PDF

Installation Instructions - Video (Coming soon)

Spare Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

Customer Reviews

Based on 12 reviews
Kyle Ditch
Ender 6 Upgrade

Clear instructions and quality parts

Dustin West
Having issues with setting in cura

After trouble shooting my own flaws from setup process with the support it works perfectly and as hoped, support was quick and helpful. Thankyou

Please make sure to update your e-steps to 400. Please refer to step 23 in the installation Instructions.

ben b
Great product

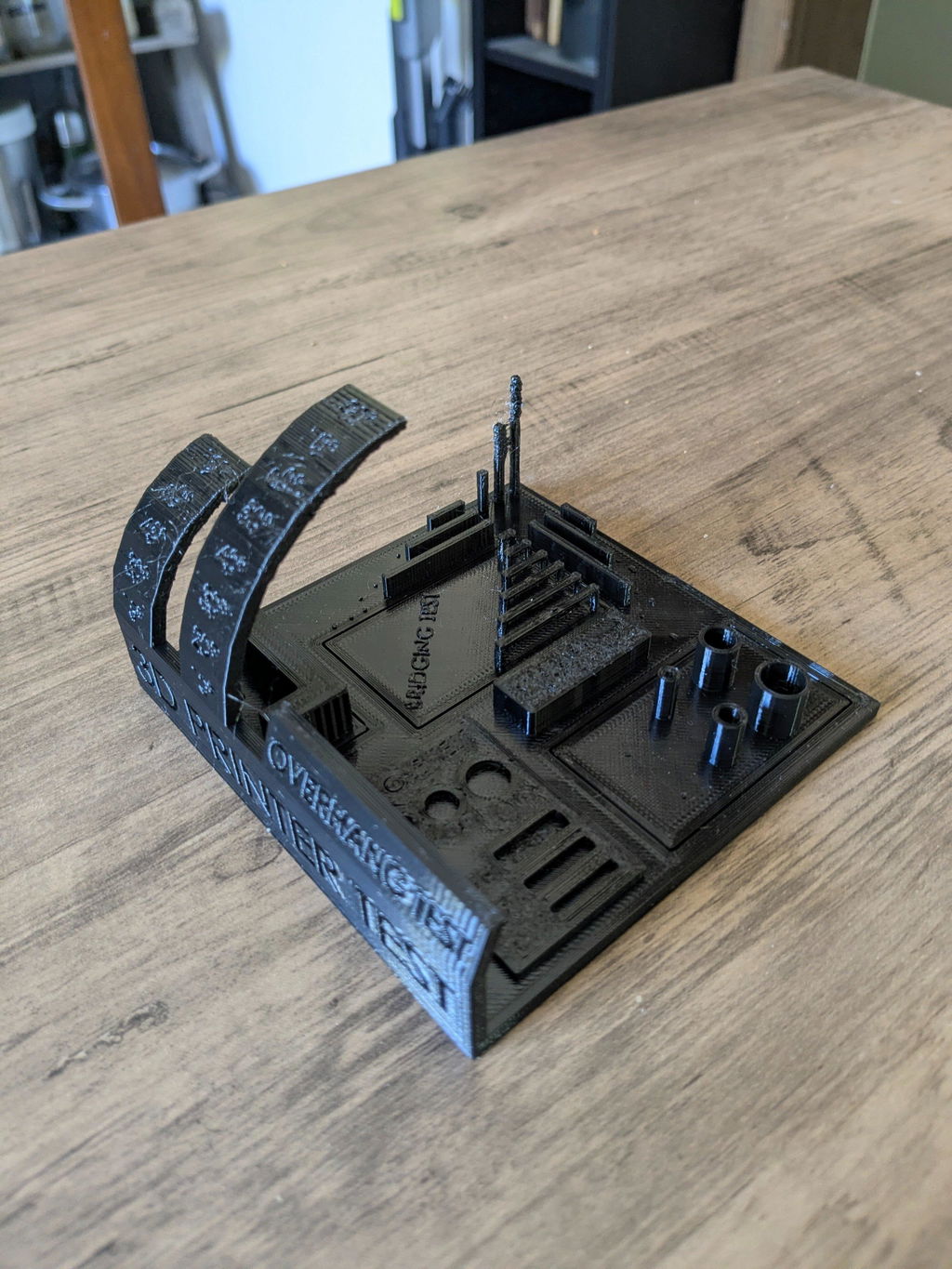

Quick delivery, easy install, first print was flawless

Very easy to install

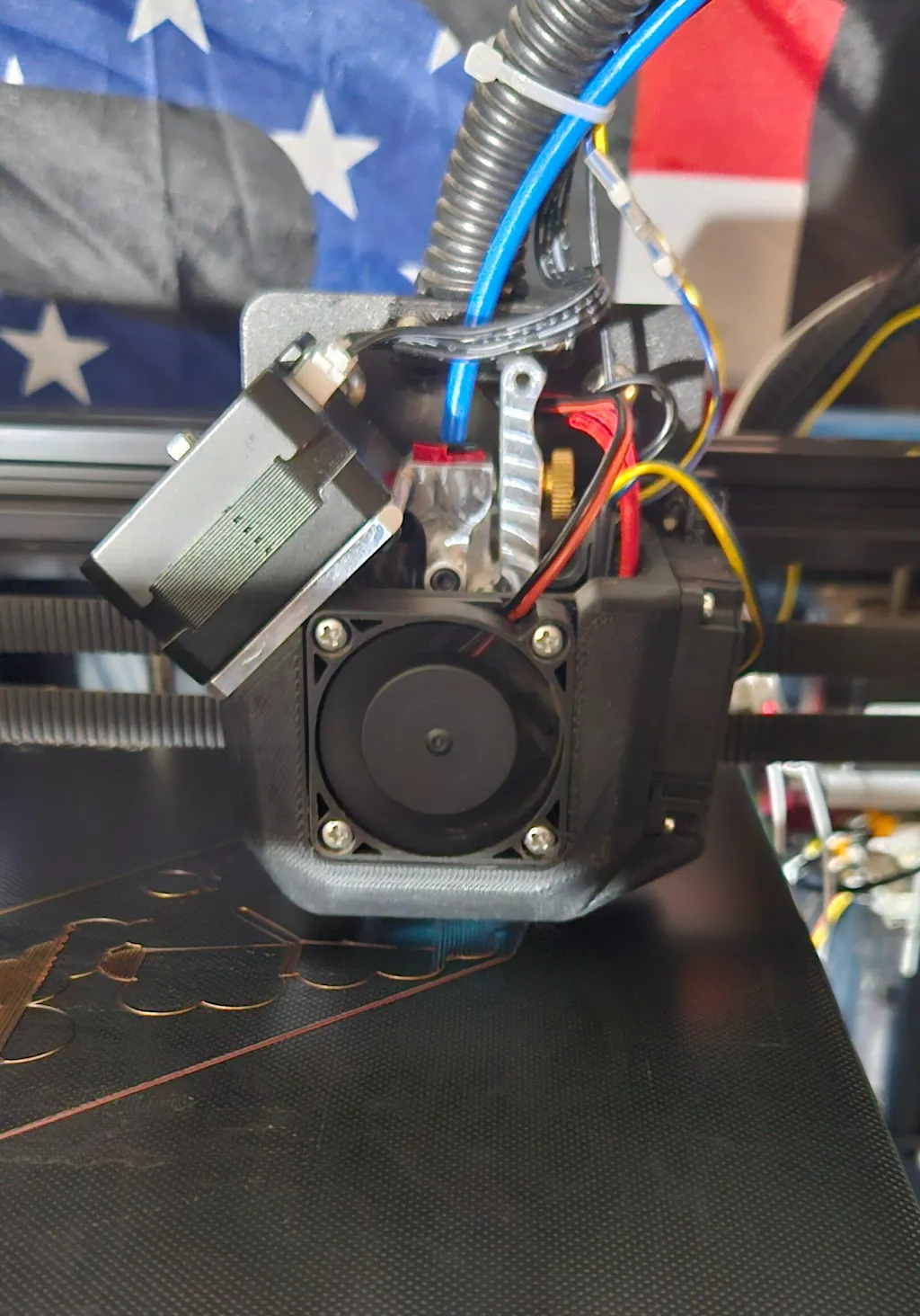

Removed my 2 year old Biqu H2, which recently started having issues, to install this extruder. Since my Ender 6 has a cartridge style thermistor (instead of the 'bead' style Creality loves), I needed a different heater block, which Micro Swiss was willing to swap out for me at no additional cost (thank you!). Install took roughly one hour. The only issue I ran into was that I had to 'snip off' the corner of my 40x20 heatsink fan, as that corner hits the stepper mount (the same happened with the stock 40x10 heatsink fan) - see attached photo.

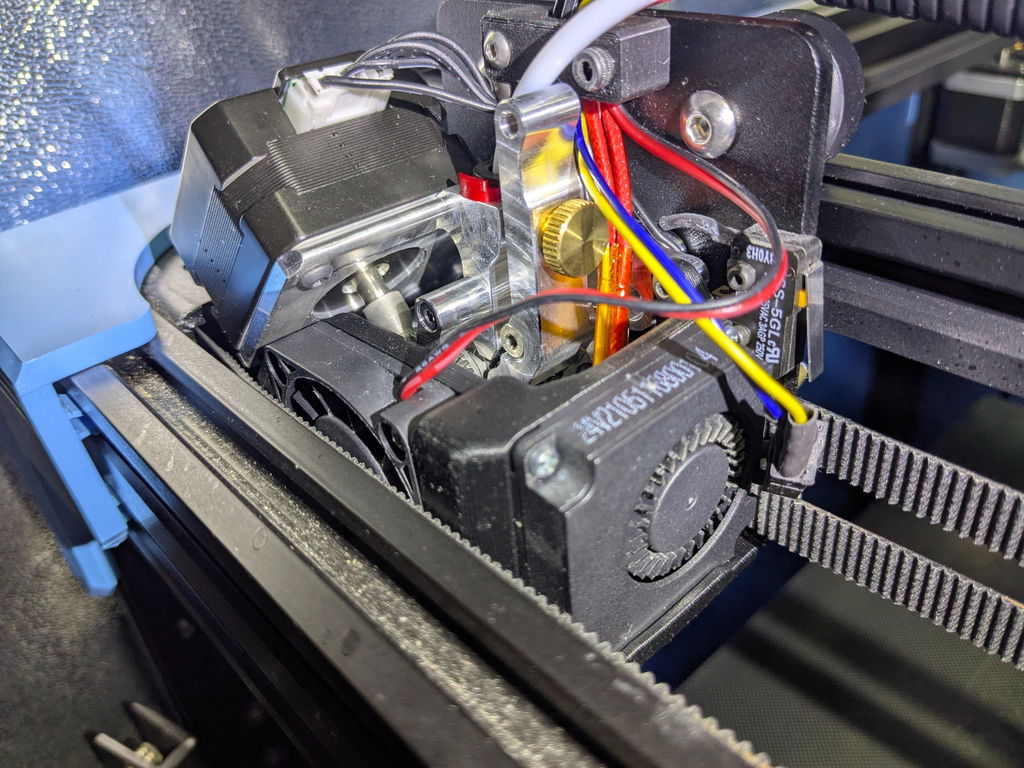

There were two screws that hold the mount/adapter to the existing X plate, three screws that hold the extruder assembly to the adapter, then you route your cables and install the fan shroud. Finally, I had to modify my stepper motor cable, as I did not wish to use the 'adapter cable' Micro Swiss includes with the kit. My stepper cables, by default, have the middle two pins swapped on one end -- the 'adapter cable' simply reverses this. I swapped the two middle pins on my stock cable (so they were the same on both ends) and tested to make sure the stepper was working properly.

I still have some tuning to do, but so far it looks like it's working perfectly. My only gripe is with the fan shroud -- visibility for the currently printing layer is pretty well non-existent. Seems no one else has the same issue, as there are no third party fan shrouds on Printables or Thingiverse.

In my Klipper printer.cfg, I changed the following lines for the extruder:

gear_ratio: 3:1
rotation_distance: 22.46

Worth what it costs, more or less...

Like night and day. I have installed the Micro Swiss NG™ Direct Drive Extruder for Creality Ender 6. It is laborious, but if you do it calmly, the installation instructions are very complete and make sure you don't get lost. Good job to whoever made them.
The result, working the first time and the printer improves significantly after installing this part. If in doubt, I recommend it to get rid of quality problems and jams with the original extruder.
The only flaw that I can find is that it seems very expensive to me if you evaluate it on the total price of the printer compared to this part, but anyway, I suppose they are trying to make money.
