Micro Swiss Direct Drive Extruder for ExoSlide System

Original price $ 57.75 - Original price $ 99.75
Original price $ 57.75
$ 57.75
$ 57.75 - $ 99.75
Current price $ 57.75

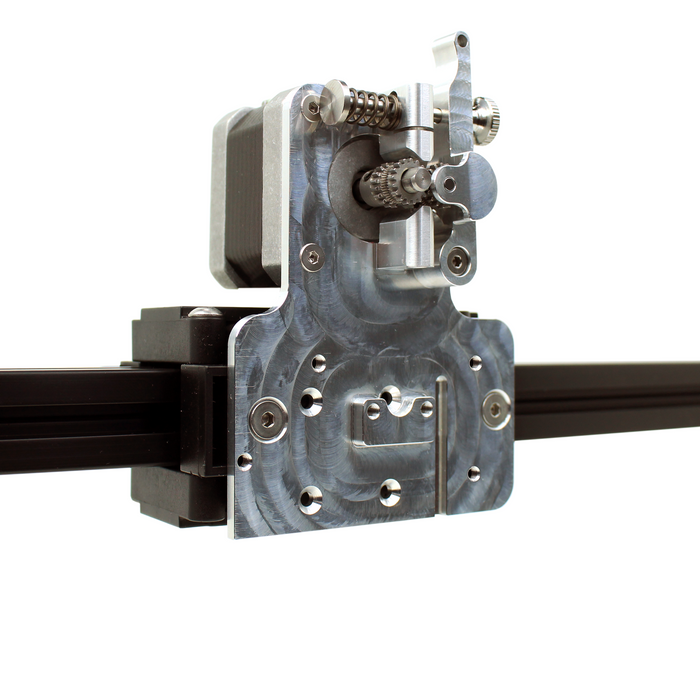

Micro Swiss Direct Drive Extruder configured for ExoSlide System.

  • No modification required, simple plug and play
  • No printed brackets or sandwiches


  • Dual-drive train
  • Hardened tool steel, CNC precision cut gears
  • Adjustable filament grip
  • Easy filament loading
  • Short, highly constrained filament path
  • Prints flexible filaments with high speed and accuracy
  • Outstanding extrusion control
  • Lightweight aluminum body

  • Printers with ExoSlide System

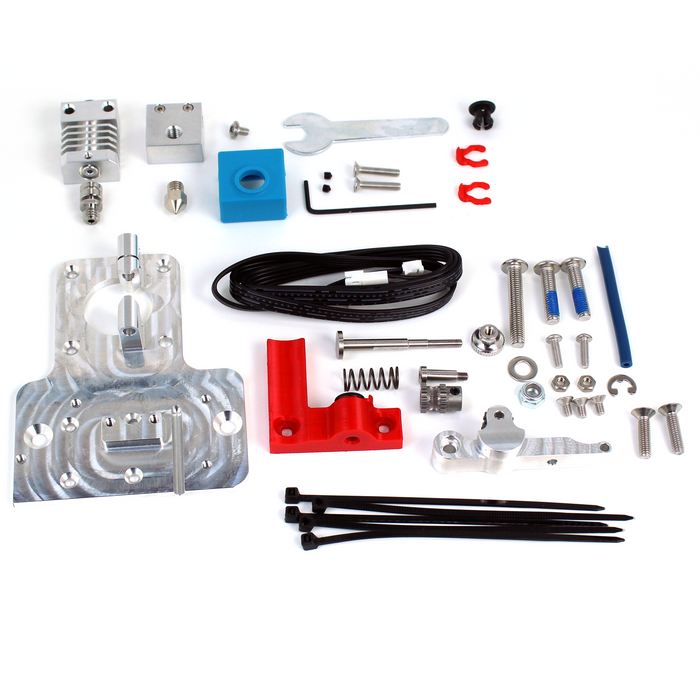

What's in the box
  • Stepper motor, Linear Rail and Carriage Block are NOT included
  • 1x Micro Swiss All Metal Hotend (If option selected)
  • 1x Main Extruder body
  • 1x Extruder Lever
  • 1x Spring Pin
  • 1x Spring
  • 2x Gears
  • 1x Tension Knob
  • 1x Shoulder Pin
  • 1x Extension Cable
  • 3x M3 x .5 x 6mm Motor Mounting Screws
  • 2x M4 x .7 x 16mm ExoSlide mounting screws
  • 2x M3 x .5 x 10mm Screws
  • 2x M3 x .5 Nuts
  • 5x Zip Ties
  • 1x Printed Bracket
  • 1x Beveled Capricorn Liner


Instructions Instructions - PDF

Instructions Instructions By Daniel at ModBot - Video

Extra Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

CM2™ - MK8 Nozzle

    Choose a Hotend Option

    Customer Reviews

    Based on 7 reviews
    fan duct

    having a really hard time finding a fan duct for this DD unit

    James Mayhugh
    Micro Swiss Direct Drive Extruder for ExoSlide System

    Easy setup, works very well.

    Mike Swenson
    MicroSwiss direct drive for Exoslide

    Shipped same day as ordered. Perfect fit good instructions. Great prints.

    William Ortner
    So far works good

    Works good going to try a pancake motor on it to reduce the weight but it works good so far

    As expected

    I already have MSDD for my Ender 5 then I switched to this one for my Exoslide setup. Everything works great as expected with tight fit.
