Micro Swiss Direct Drive Extruder for Linear Rail System

Micro Swiss Direct Drive Extruder for Linear Rail System

$ 57.75 - $ 99.75
$ 57.75
$ 57.75
$ 57.75 - $ 99.75
$ 57.75
SKU

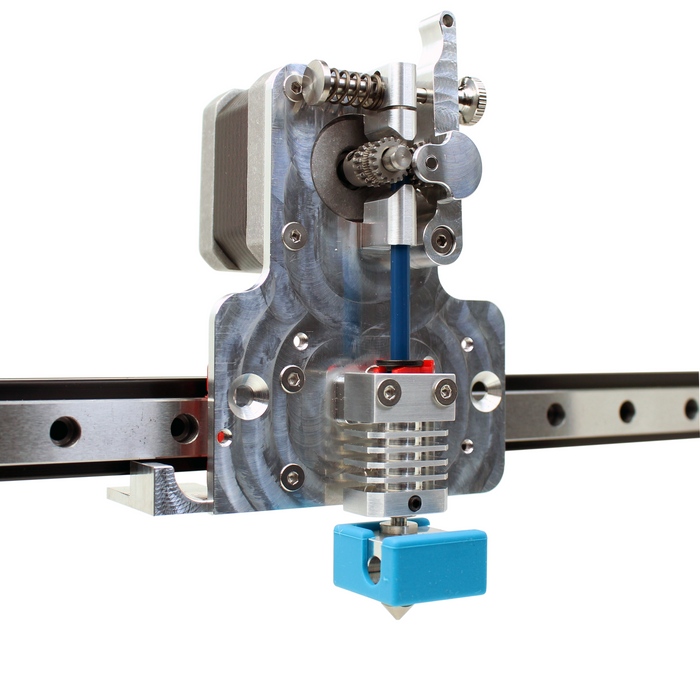

Micro Swiss Direct Drive Extruder configured for Linear Rail System

  • No modification required, simple plug and play
  • No printed brackets or sandwiches

Features:

  • Dual-drive train
  • Hardened tool steel, CNC precision cut gears
  • Adjustable filament grip
  • Easy filament loading
  • Short, highly constrained filament path
  • Prints flexible filaments with high speed and accuracy
  • Outstanding extrusion control
  • Lightweight aluminum body


Fits
  • Printers with MGN12 Linear Rail with MGN12H Carriage Block
  • Only for printers with bottom belt mounting position
What's in the box
  • Stepper motor, Linear Rail and Carriage Block are NOT included
  • 1x Micro Swiss All Metal Hotend (If option selected)
  • 1x Main Extruder body
  • 1x Linear Rail mounting bracket
  • 1x Extruder Lever
  • 1x Spring Pin
  • 1x Spring
  • 2x Gears
  • 1x Tension Knob
  • 1x Shoulder Pin
  • 1x Extension Cable
  • 3x M3 x .5 x 6mm Motor Mounting Screws
  • 4x M3 x .5 x 8mm Linear Rail bracket mounting screws
  • 2x M3 x .5 x 10mm Screws
  • 2x M3 x .5 Nuts
  • 5x Zip Ties
  • 1x Printed Bracket
  • 1x Beveled Capricorn Liner

Installation

Instructions Instructions - PDF

Installation Instructions By Daniel at ModBot - Video

Extra Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

CM2™ - MK8 Nozzle

    Choose a Hotend Option

    Customer Reviews

    Based on 27 reviews
    78%
    (21)
    11%
    (3)
    4%
    (1)
    0%
    (0)
    7%
    (2)
    85.7
    100.0
    A
    Arthur Galant
    Excellent!

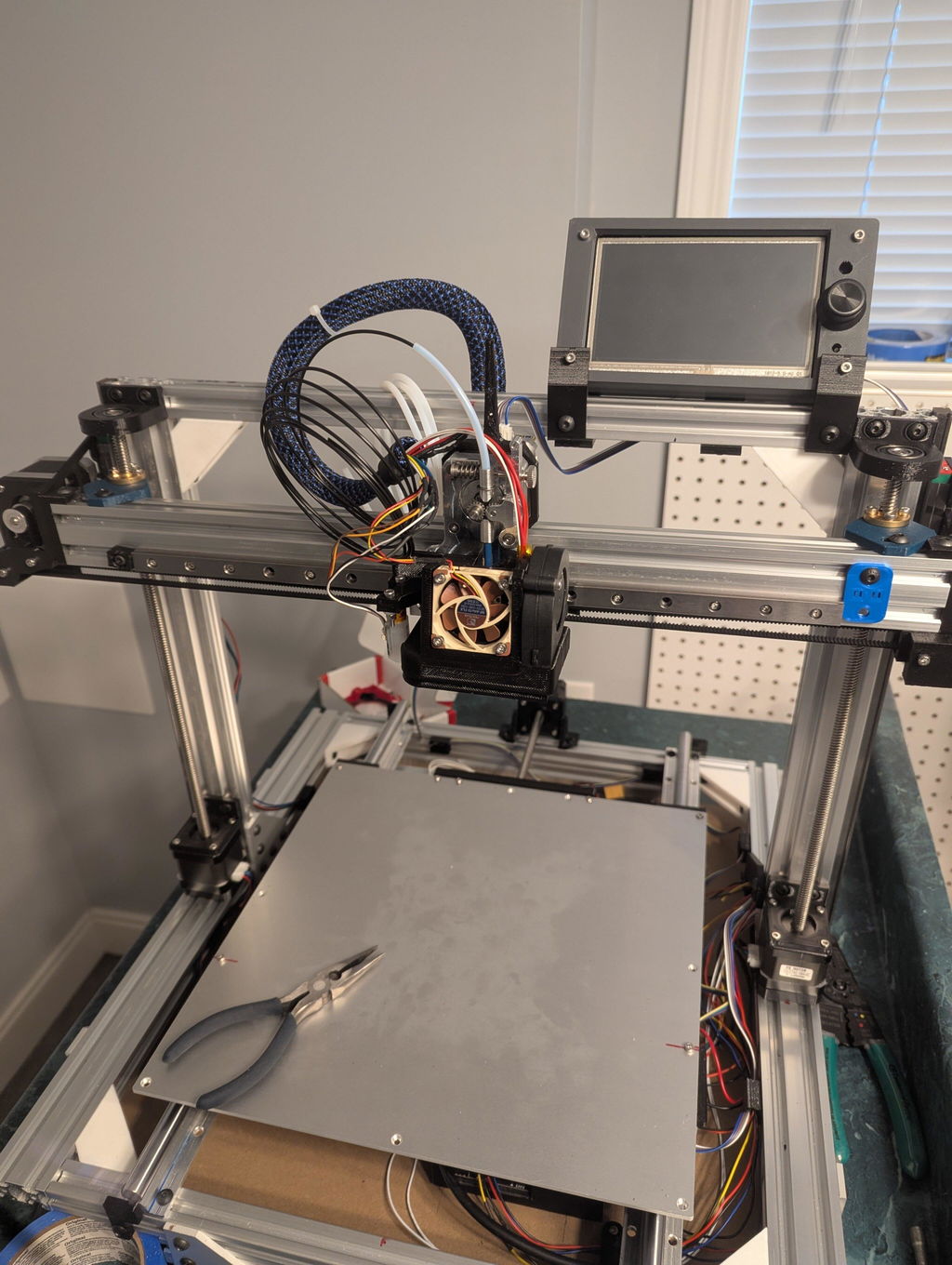

    Installed on a modded CR-10, I had no trouble with the installation process and the quality is definitely outstanding.

    S
    Steve Wise
    Another great Micro Swiss product

    Several years ago I purchased the Micro Swiss Direct Drive Extruder for my Ender 3 Pro for the POM wheels. It has worked flawlessly. I decided to make the move to linear rails. This product didn’t disappoint. Easy to install. The only improvement I would make is to make the trigger for the X limit switch adjustable. I had to redesign the X axis cover to allow the limit switch to be moved further to the left.

    A
    A.E.W.

    Brilliant product, beautiful craftsmanship in the machining. Bolted straight onto my ender 3 whilst still using the stock hotend. Overall 10/10.

    J
    Jackie Wong
    Excellent Item

    This is a very good back plate for anyone wanting to upgrade their bed slinger printer to a linear rail system. Absolutely no complaints. Just make sure your carriage block is MGN12H, otherwise it won't be mountable.

    E
    Edward Domm
    Made it fit

    I bought this for a Longer LK5 Pro that has been modified with linear rails and a top mounted spool holder. The extruder main frame had one extra hole drilled and tapped to mount the fan holder (one was already there) and two extra holes drilled and tappet to mount the fan cover. An aluminum bracket is being made to hold an end of filament micro switch to the top of the extruder frame. The extruder belt connection frame/ X-limit switch actuator fits well. I’ll forward photos when all the construction is done but so far this extruder is well made and a very close match to the improved Longer printer.
