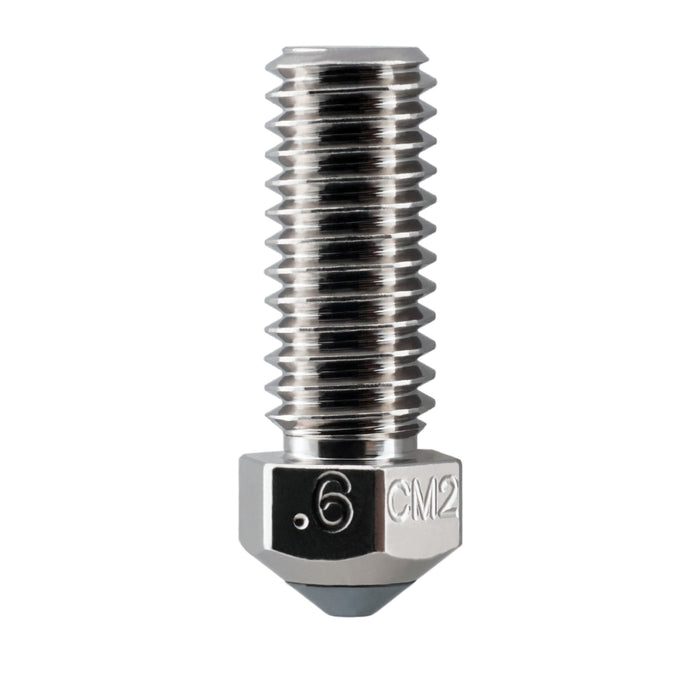

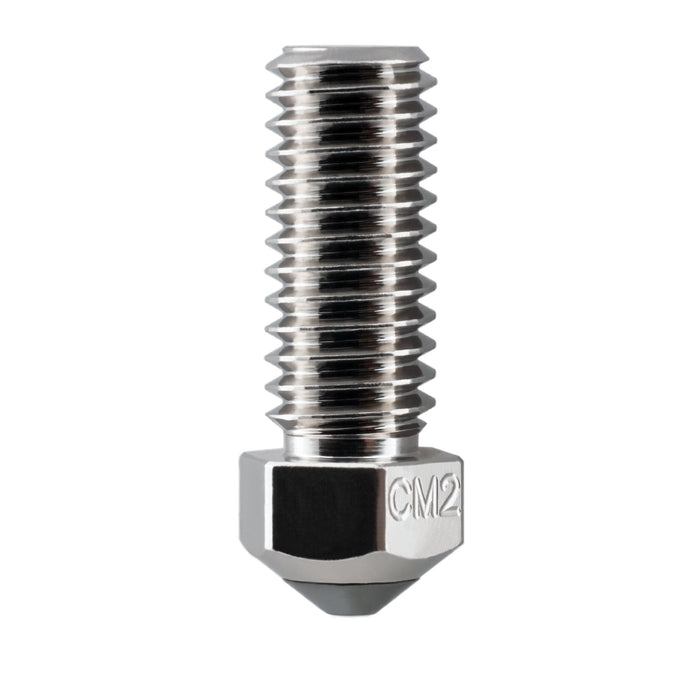

Microswiss CM2™ Nozzle for Qidi Tech Q1 Pro, X-Max 3, X-Plus 3

Microswiss CM2™ Nozzle is an ideal nozzle for all applications. Core of the nozzle is made of high-temperature Copper Chromium Zirconium and plated with an Electroless Nickel Plating. This special alloy retains its strength at much higher temperatures compared to a regular copper alloy. The tip of the nozzle is made of M2 Hardened High Speed Steel and coated with a special nonstick nano coating.

Microswiss CM2™ Nozzle Features:

• Copper Chromium Zirconium body


• Plated with an Electroless Nickel Plating


• M2 Hardened High Speed Steel insert
• Plated with a Electroless Nickel Plating
• Coated with nonstick nano WS2 coating.
• Coefficient of friction: 0.035
• Heat-treated hardness:  68 HRC


• Orifice size available: .4mm, .6mm, .8mm


• Limited lifetime warranty against wear
  Warranty

Made in USA by Micro Swiss

Fits

• Qidi Tech Q1 Pro
• Qidi Tech X-Max 3
• Qidi Tech X-Plus 3

Specification

• Threads: M6x1.0
• Thread length: 14mm
• Overall length: 19mm
• Filament size: 1.75mm
