FlowTech™ Hotend for ELEGOO Neptune 4 / 4 Pro

Original price $ 64.99 - Original price $ 64.99
Original price
$ 64.99
$ 64.99 - $ 64.99
Current price $ 64.99
SKU M3107

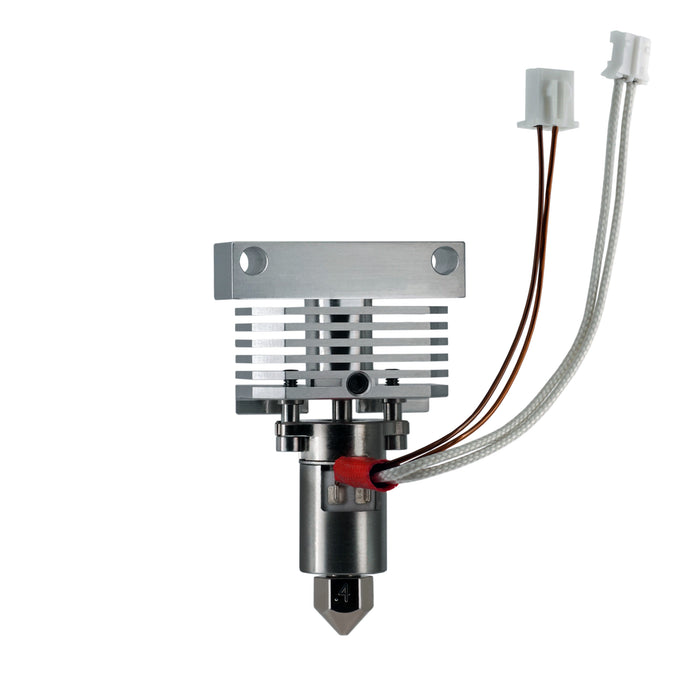

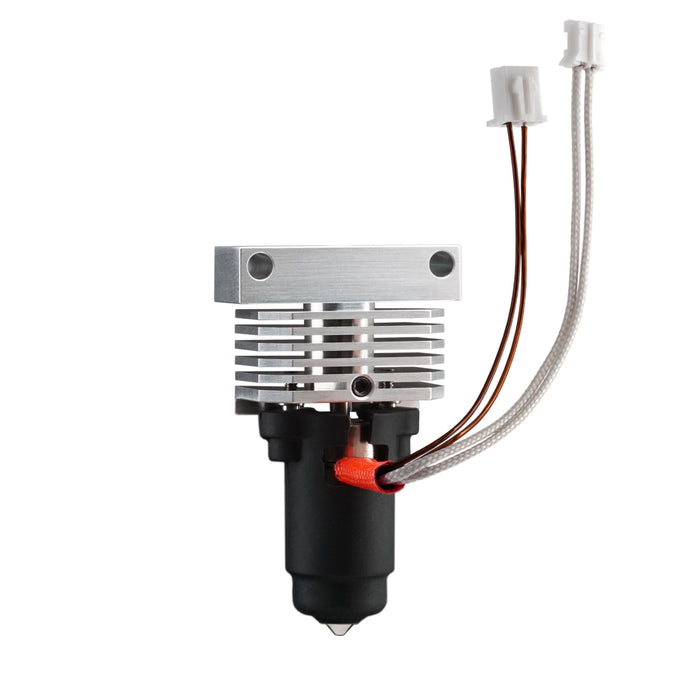

FlowTech™ Hotend for ELEGOO Neptune 4 / 4 Pro

The FlowTech hotend is now available for Elegoo printers, starting with Neptune 4 and 4 Pro.

Installing this hotend on Elegoo Neptune 4 and 4 Pro printers is a very quick and easy process. The kit comes with a plug and play Heater Core, thermistor and a heatsink fully compatible with Neptune 4 and 4 Pro.
Stock z-height, build volume and firmware remains unchanged.

Upgrading your Elegoo Neptune 4 and 4 Pro to a FlowTech ecosystem allows you to use a full range of FlowTech, leak-proof nozzles including Diamondback nozzles that have a solid diamond tip - NOT a diamond coating.

Made in USA by Microswiss

Features:
  • Leak-Proof Nozzle:

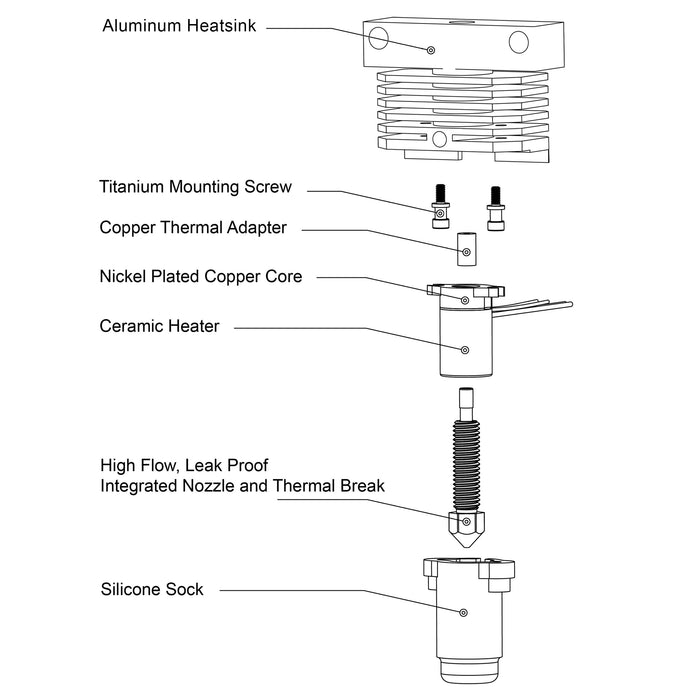

    Tired of messy nozzle leaks that ruin your prints and waste filament? FlowTech Hotend combines nozzle and thermal break into one permanently sealed assembly that ensures a leak-proof hotend.

  • Cold Nozzle Change:
    Swapping out nozzles used to be a time-consuming and potentially hazardous task. With a FlowTech Hotend, nozzle changes are effortless, and there's no need for hot tightening, and you can do it with just one hand.

  • High-Flow Characteristics:
    Ceramic cylindrical heater and 28.6mm melt zone provides excellent volumetric flow rate.

  • All-Metal Design:
    Built to last! FlowTech hotend features an all-metal design that can handle most modern 3D printing filaments. The entire hotend is machined and assembled in-house, with quality control performed at multiple stages during the manufacturing process. At the end, each hotend undergoes a full thermal cycling test before it is packaged.

  • 300°C Max Temperature:
    This hotend is rated at 300°C temperature with a properly tuned NTC thermistor for each specific printer. This particular edition is perfectly tuned for Elegoo Neptune 4 and 4 Pro so no firmware changes are needed.
Fits:

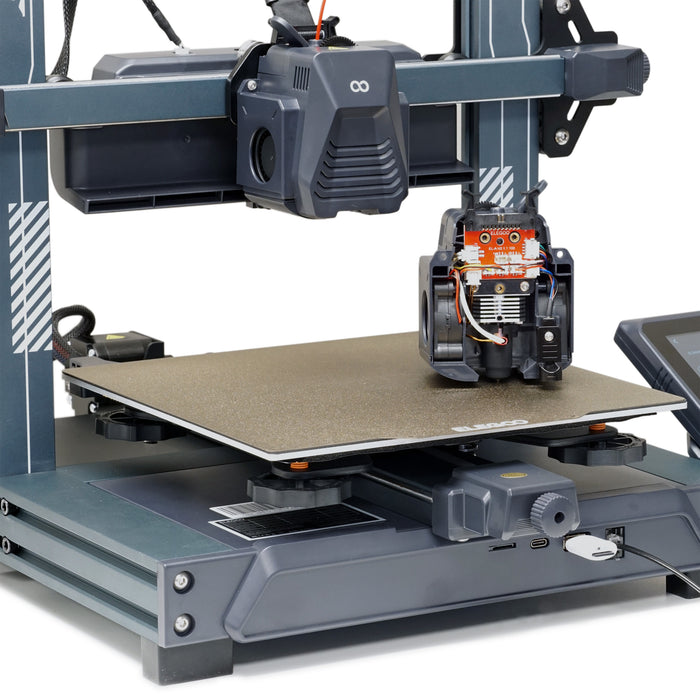

  • ELEGOO Neptune 4
  • ELEGOO Neptune 4 Pro

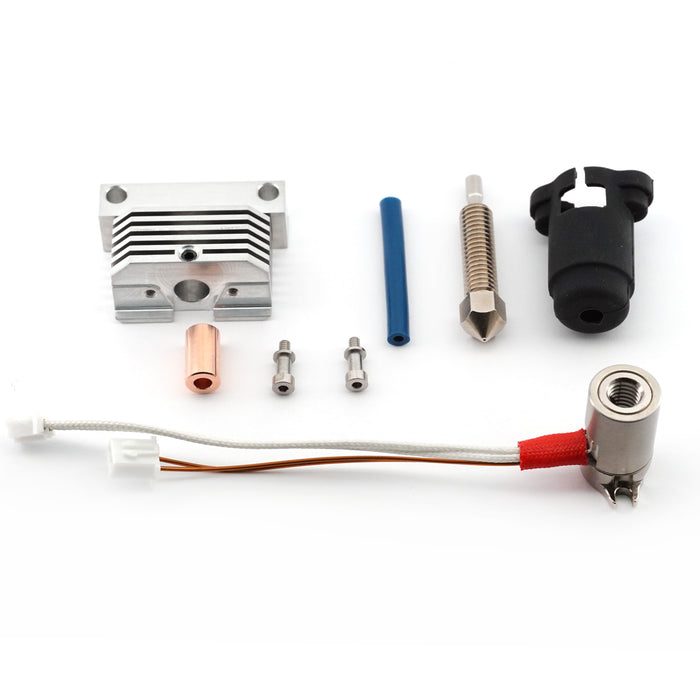

What's in the box
Installation

PDF:
Installation Instructions - PDF

Video Guides:

Coming soon...

Spare Nozzles

FlowTech™ Brass Plated Nozzles

FlowTech™ CM2™ Nozzle

FlowTech™ DiamondBack Nozzles

FlowTech™ - CHT High Flow Nozzles

Customer Reviews

Based on 5 reviews
60%
(3)
0%
(0)
0%
(0)
0%
(0)
40%
(2)
F
Felix Bloch
The most important upgrade to a Neptune 4 Series printer

I decided to go from a Stock N4Pro and upgrade it as much as possible. The hotend itself is probably the most impactful upgrade of the bunch. The filament flows more smoothly than I could have ever imagined, the layers are great and so is the speed.

A
ArsenalKD
Yes!

Yes, its worth it, and very easy to install. Upgrade to a Capricorn ptfe tube as well. The strange nozzles that are stock with my N4 pro, I had all sorts of issues with...upgrading to hardened steel and even so called ruby nozzles were no good. This makes it very easy to change out nozzles, and upgraded to the hard steel...makes my day to be able to finally print PA6-GF and CF without issues. Thanx MS for a worthy upgrade!!!

N
Nat F.
A +

It works great! I had an extra hotend and extruder unit that I bought from Amazon so when I bought the Flowtech unit I could leave my printer running while I replaced the new hotend on the boxed one. Then when I felt more ambitious I bolted on the new unit with the Flowtech hotend! It was super easy only problem was access on the lower rear bolts, but still not bad. Then leveling and presto. So far I haven't put it thru its paces but hopefully soon. I've never been able to get my Neptune Pro to go at full speed and stick. So I'm hopeful but if it doesn't work I still have access to a longer heat zone and better nozzles.

Mike Johnson did you mean to give it 1 star and say it works like a dream?

A
Andrew Krestoff

Expensive and not an improvement over original part

m
michael johnson
Awesome product

Easy to install and works like a dream!!!
