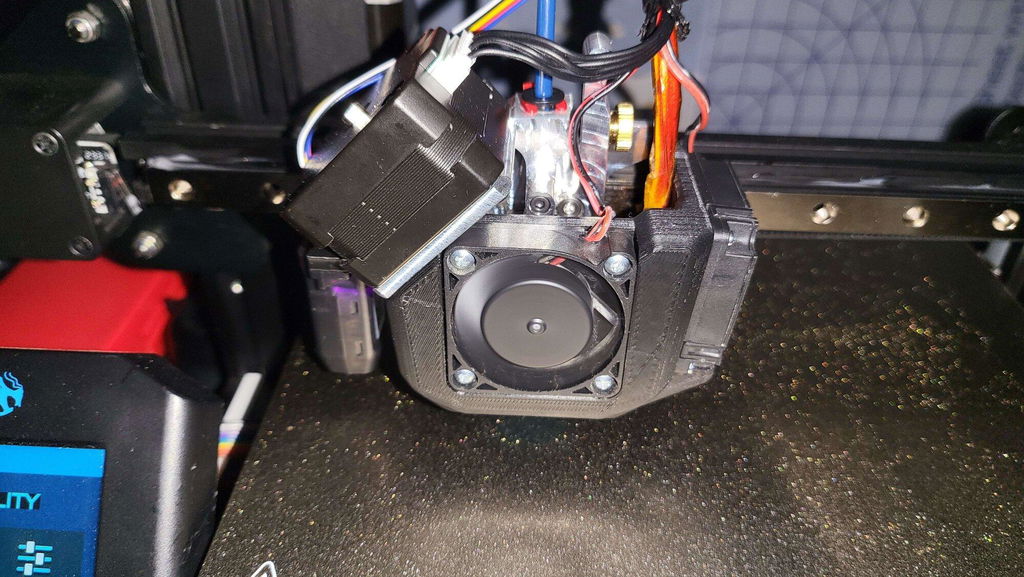

Micro Swiss NG™ Direct Drive Extruder for Creality CR-10 / Ender 3 Printers (Linear Rail Edition)
Micro Swiss NG™ Direct Drive Extruder
This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.
With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design. This further increases system rigidity.
Features:
- Lightweight
- 3:1 Gear ratio
- Adaptable to wide range of 3D Printers
- Hardened steel, precision cut Dual Gear drive
- Industry shortest, highly constrained, TwinClad XT™ plated filament path
- Bevel Gear system allows a low overhang extruder mount
- Integrated with a Micro Swiss All Metal Hotend
Made in USA by Micro Swiss
Fits
- Following printer with MGN12 Linear Rail with MGN12H Carriage Block:
- CR-10
- CR-10s
- CR-10-S5
- CR-10-S4
- Ender 3
- Ender 3 Pro
- Ender 3 V2
What's in the box
- 1x Master Extruder Assembly
- 1x Adaptation plate
- 1x LDO Stepper motor - Motor Drawing
- 1x Fan Shroud
- 1x Custom extension cable
-
1x All Metal hotend (M2707-04)
- Thermal Break (M2593)
- Heater Block (M2587)
- Silicone Sock (M2588)
- MK8 Nozzle (M2549-04)
Hardware:
- 4x M3 x .5 x 6mm Flat Head Cap Screws
- 4x M2.2 x 8mm Thread Forming Screw for Plastic
- 4x M3 x 12mm Thread Forming Screw for Plastic
- 1x 7mm spanner wrench.
- 1x 1.5mm Allen wrench
- 5x Zip Ties
Installation
PDF:
Installation Instructions - PDF
Video Guide:
By My Tech Fun
Downloads
Spare Nozzles
A2 Hardened tool steel MK8 nozzles
M2 Hardened High Speed Steel Nozzle MK8 nozzles
