Micro Swiss NG™ Direct Drive Extruder for Creality Ender 5 / 5 Pro / 5 Plus

Original price $ 119.95 - Original price $ 119.95
Original price
$ 119.95
$ 119.95 - $ 119.95
Current price $ 119.95
SKU M3202


Micro Swiss NG™ Direct Drive Extruder

This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.

With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design.  This further increases system rigidity.

Features:

  • Lightweight
  • 3:1 Gear ratio
  • Adaptable to wide range of 3D Printers
  • Hardened steel, precision cut Dual Gear drive
  • Industry shortest, highly constrained, TwinClad XT™ plated filament path
  • Bevel Gear system allows a low overhang extruder mount
  • Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

Fits
  • Ender 5
  • Ender 5 Pro
  • Ender 5 Plus
What's in the box
  • 1x Master Extruder Assembly
  • 1x Adaptation plate
  • 1x Stepper motor
  • 1x All Metal Hotend Assembly
  • 1x Fan Shroud
  • 1x Custom Extension Cable
  • 1x Printed Brackets

Hardware:

  • 1x Eccentric nut
  • 1x M5 x .8 x 30mm CAP SCREW
  • 1x 5mm ID 10mm OD Washer
  • 1x M5 x .8 Nylon Lock Nut
  • 2x M5 x .8 x 20mm Nylon Patch CAP SCREWs
  • 4x M2.2 x 8mm Thread Forming Screw for Plastic
  • 4x M3 x 12mm Thread Forming Screw for Plastic
  • 1x 7mm spanner wrench
  • 1x 1.5mm Allen wrench
  • 5x Zip Ties

Installation

PDF:
Installation Instructions - PDF

Video Guide:
By Daniel at ModBot

Downloads
Spare Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

CM2™ - MK8 Nozzle


Customer Reviews

Based on 54 reviews
83%
(45)
13%
(7)
2%
(1)
0%
(0)
2%
(1)
D
D.F.
Same, No Quarrel w/ Metal Parts

Have been a MicroSwiss customer since 2017, metal components and replacement stepper are as expected, but plan to print/design plastic parts.
The provided BLTouch bracket sagged after 3 weeks of PETG printing/36 hours of ABS printing.
Again, just pre plan to make or source your own, and all will be well.

S
StephenH
Neptune X (Ender 5 clone) works too!

The Elegoo Neptune X is essentially an Ender 5 clone. After some conversations with Micro-Swiss, I ordered the NG Direct Drive Extruder and installed it. Overall, it was pretty simple with a few exceptions.

First, the BL-Touch sensor I had was previously mounted on the right side of the print head. This moves it to the left side. That led to some really puzzling times in trying to figure out why auto-level was not working. I finally realized that I could not use the actual offset from the nozzle for the X offset. If it were set to 30mm or higher, auto-level failed. Setting it to 29mm works. The probe is slightly off center, but that is not a big issue as it otherwise works.

Second, the instructions for the Ender 5 were not quite the same for the Neptune X. I finally found the e-steps setting and got it configured.

Third, the BL-Touch sensor is sitting above the nozzle. The first time it tried to level, the Z axis kept trying to raise the print bed and it ran into the nozzle and stalled. I had to quickly cut power and figure out the offset setting.

None of these are problems with the NG Direct Drive Extruder though. It is performing well. I can finally print TPU. Now if I can get the bed adhesion to work well with tall, thin objects, that will be great. Again, not an NG problem, but there is a learning curve.

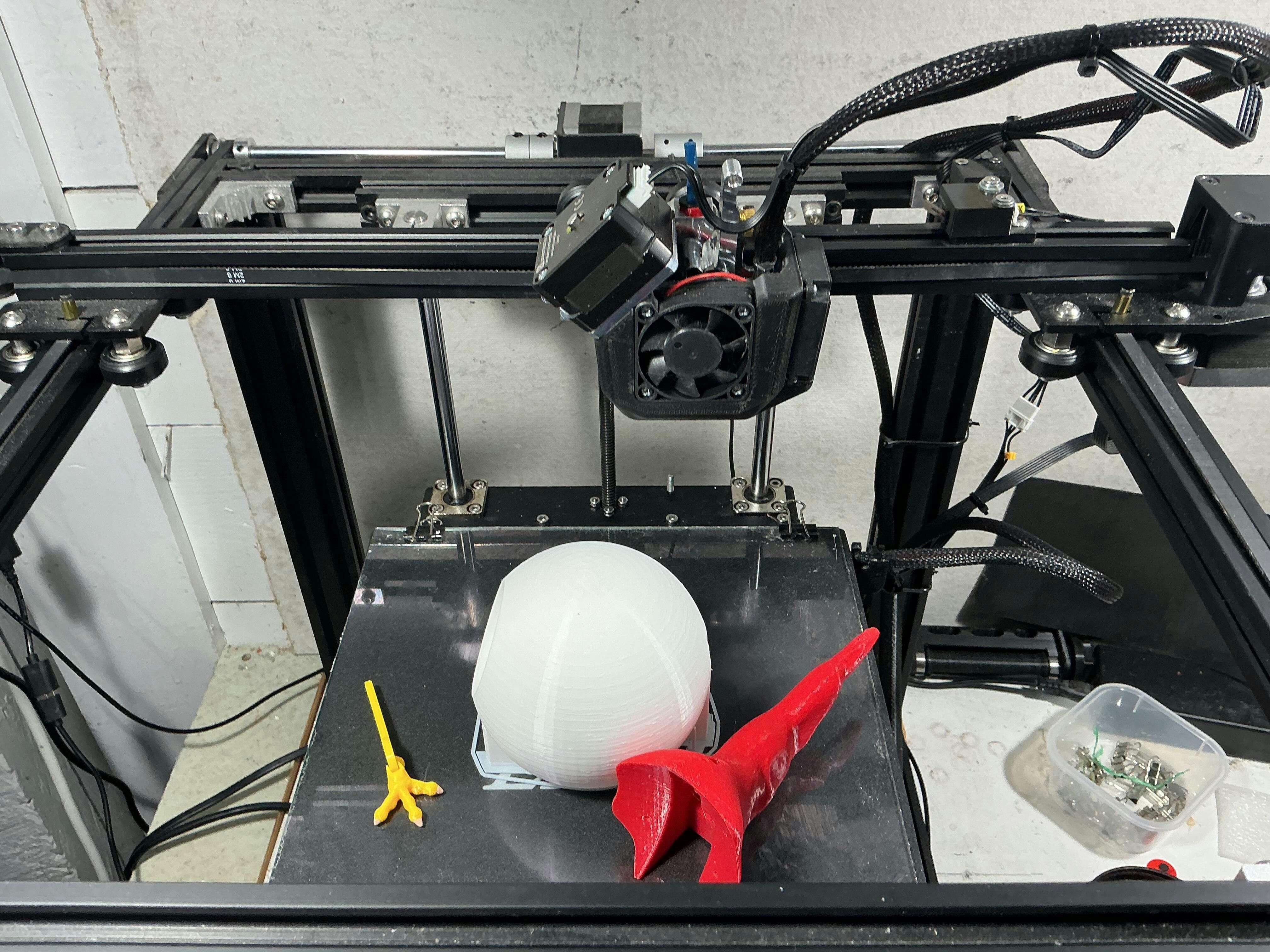

I am really happy with this upgrade. My prints are much better than with the Bowden tube setup replaced by this. I am glad Micro-Swiss came out with this.

G
Glenn D
Excellent upgrade

So far I have just run PLA. The prints are very good. The upgrade was easy and it just worked as advertised.

E
Ender 5 user

Good unit

G
George

Great extruder that has really improved the quality of my prints.
