Micro Swiss NG™ Direct Drive Extruder for Creality CR-10S Pro V2 and CR-10 Max
Original price
$ 119.95
-
Original price
$ 119.95
Original price
$ 119.95
$ 119.95
-
$ 119.95
Current price
$ 119.95
SKU M3213

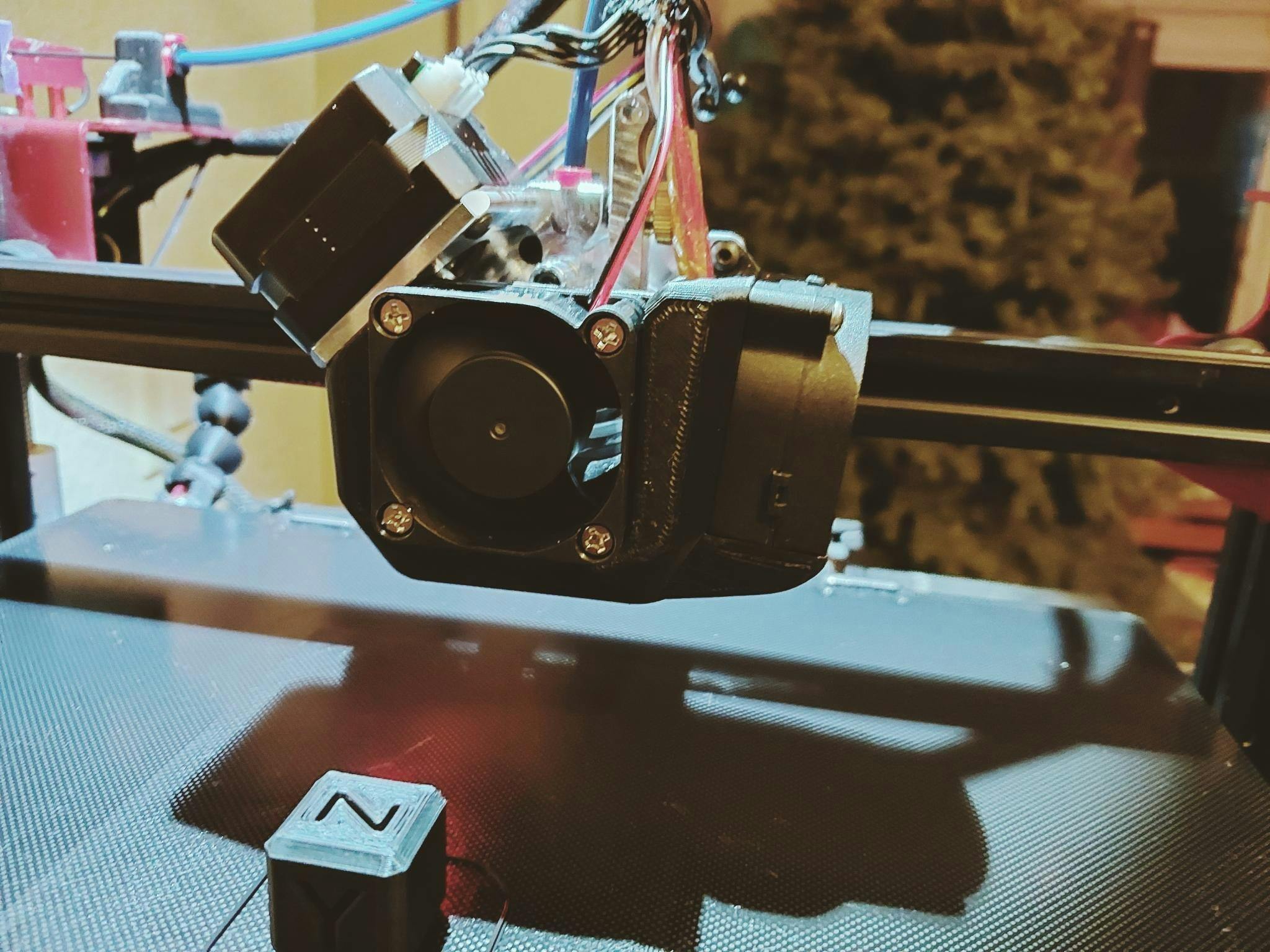

Micro Swiss NG™ Direct Drive Extruder
This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.
With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design. This further increases system rigidity.
Features:
- Lightweight
- 3:1 Gear ratio
- Adaptable to wide range of 3D Printers
- Hardened steel, precision cut Dual Gear drive
- Industry shortest, highly constrained, TwinClad XT™ plated filament path
- Bevel Gear system allows a low overhang extruder mount
- Integrated with a Micro Swiss All Metal Hotend
Made in USA by Micro Swiss
Fits
- Creality CR-10S Pro V2
- Creality CR-10 Max
What's in the box
Extruder
- 1x Master Extruder Assembly
- 1x Adaptation Plate (M2715)
- 1x LDO Stepper motor - Motor Drawing
- 1x Fan Shroud (NG4020B)
- 1x Extension Cable (M2721)
- 5x Zip Ties
Hotend
-
1x All Metal hotend (M2707-04)
- Thermal Break (M2593)
- Heater Block (M2587)
- Silicone Sock (M2588)
- MK8 Nozzle (M2549-04)
PTFE Guide Tube Assembly
- 1x 3D Printed PTFE Bracket (MS-PTFE-B)
- 1x Bowden Coupler (M2594)
- 1x 3D Printed C-clip
- 2x M3 x 10mm Button Head Screw
- 2x M3 Nuts
- Spare Hardware
- 1x Bowden Coupler
- 1x 3D Printed C-clip
Hardware
- 1x M5 x 30mm Cap screw
- 2x M5 x 20mm Nylon Patch Cap screw
- 1x 5mm ID 10mm OD Washer
- 1x M5 Nylon Lock Nut
- 3x M3 x 18mm Thread Forming Screw
- 4x M3 x 12mm Thread Forming Screw
- 1x 7mm Low-profile spanner wrench
- 1x 1.5mm Allen wrench
- 1x 3D Printed C-clip
- 2x M3 x 6mm screws
Installation
PDF:
Installation Instructions - PDF
Video Guide:
Coming Soon...
Downloads
Spare Nozzles
A2 Hardened tool steel MK8 nozzles
M2 Hardened High Speed Steel Nozzle MK8 nozzles
