Micro Swiss NG™ Direct Drive Extruder

This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone.

With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design. This further increases system rigidity.

Features:

Lightweight
3:1 Gear ratio
Adaptable to wide range of 3D Printers
Hardened steel, precision cut Dual Gear drive
Industry shortest, highly constrained, TwinClad XT™ plated filament path
Bevel Gear system allows a low overhang extruder mount
Integrated with a Micro Swiss All Metal Hotend

Made in USA by Micro Swiss

Fits

Following printer with MGN12 Linear Rail with MGN12H Carriage Block:

CR-10
CR-10s
CR-10-S5
CR-10-S4
Ender 3
Ender 3 Pro
Ender 3 V2
Sunlu S8
Sunlu S8 Pro

What's in the box

1x Master Extruder Assembly
1x Adaptation plate
1x Stepper motor
1x Fan Shroud
1x Custom extension cable
1x Hotend assembly

Hardware:
4x M3 x .5 x 6mm Flat Head Cap Screws
4x M2.2 x 8mm Thread Forming Screw for Plastic
4x M3 x 12mm Thread Forming Screw for Plastic
1x 7mm spanner wrench.
1x 1.5mm Allen wrench
5x Zip Ties

Installation

Installation Instructions - PDF

Downloads

Spare Nozzles

Brass Plated MK8 Nozzles

A2 Hardened tool steel MK8 nozzles

M2 Hardened High Speed Steel Nozzle MK8 nozzles

Quantity

Fantastic Extruder

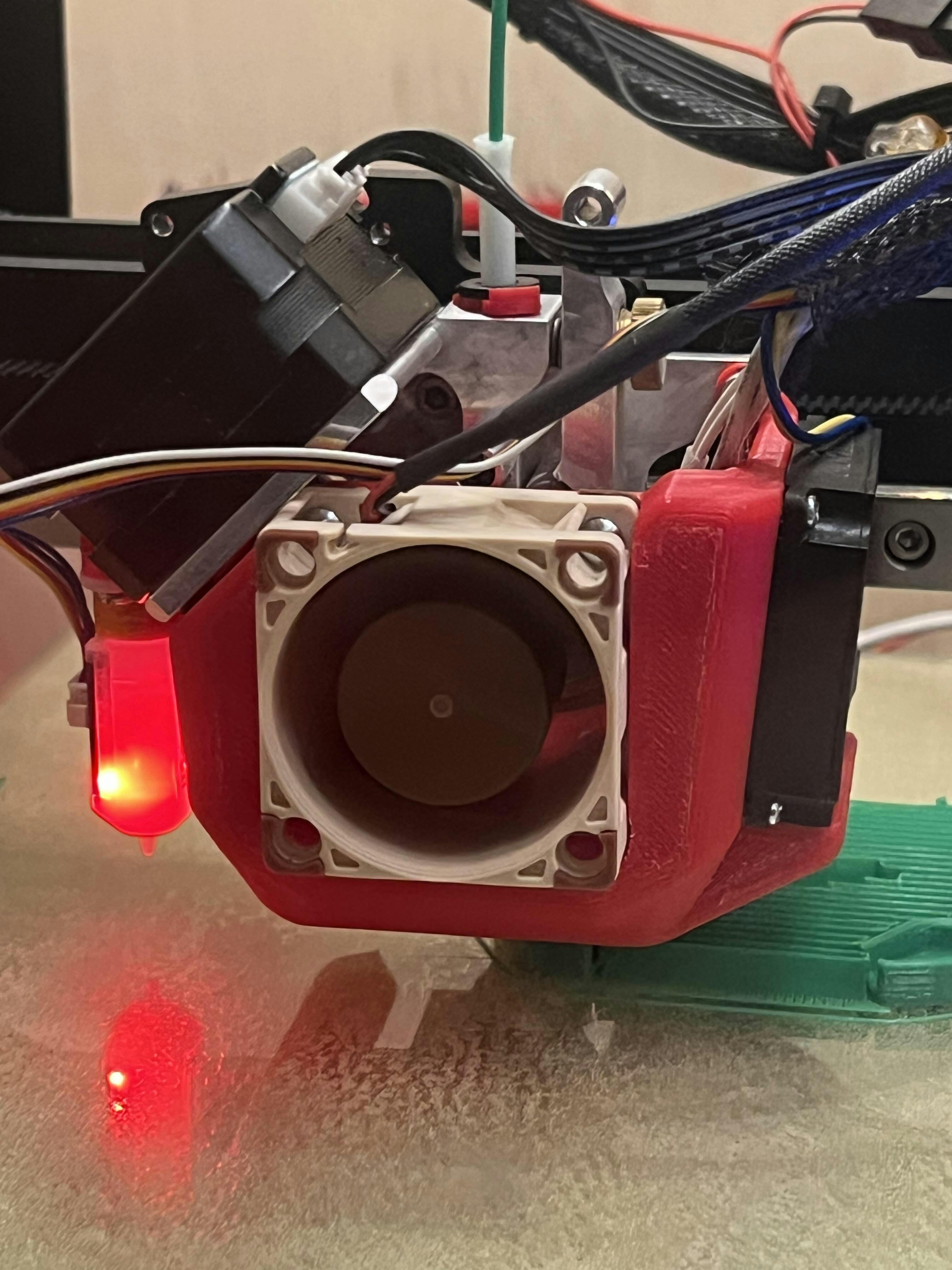

This paired with linear rails is next level. The print quality is fantastic, took a minute to lockdown the settings but once figured out it is great. I had an issue with my fan shroud though… I highly recommend printing a spare fan shroud once you get your settings locked down. I still don’t know what happened… but the next thing I knew the fan shroud was barely hanging on one side and melting to the heat block. The bolt on the BLTouch mount side was gone and the hole was stripped. I had to drill and retap the hole to a 4mm bolt. Luckily I had printed a spare beforehand and have since printed 2 more in ABS at 100% infill.

Better improvement and reliability than I could ever have imagined was possible with one upgrade

WOW this is great, the Improvement in quality and reliability is amazing, I all so got the Micro Swiss soiled cooper heat block and I'm using 0.6 CHT nozzle with it. But it all come down to reliability before 1 out of 3 prints would fail but now I've had this installed for 48 hour and I have printed 3 pieces of Mandalorian armor with on issues, and in less time. I would never have thought this one upgrade to my Ender 3 MAX V2 would make this much improvement.

Thanks Micro Swiss for a great Direct Drive Extruder

Great

Best extruder I have ever used

I bought this as soon as the linear rail version was released. Installation was on par with other extruders; I have purchased the other direct drive variations from Micro Swiss and this is my basis of comparison. The quality of the unit is fantastic, and the print results are the best I have been getting in years. The best thing about this extruder is that it never seems to clog, and even when a filament spool runs out mid-print or gets tangled, the extruder never needs to be disabled and cleaned out. You can just put the new filament in, push it through, and all is well. I cannot recommend this extruder more.

Easy installation, phenomenal performance

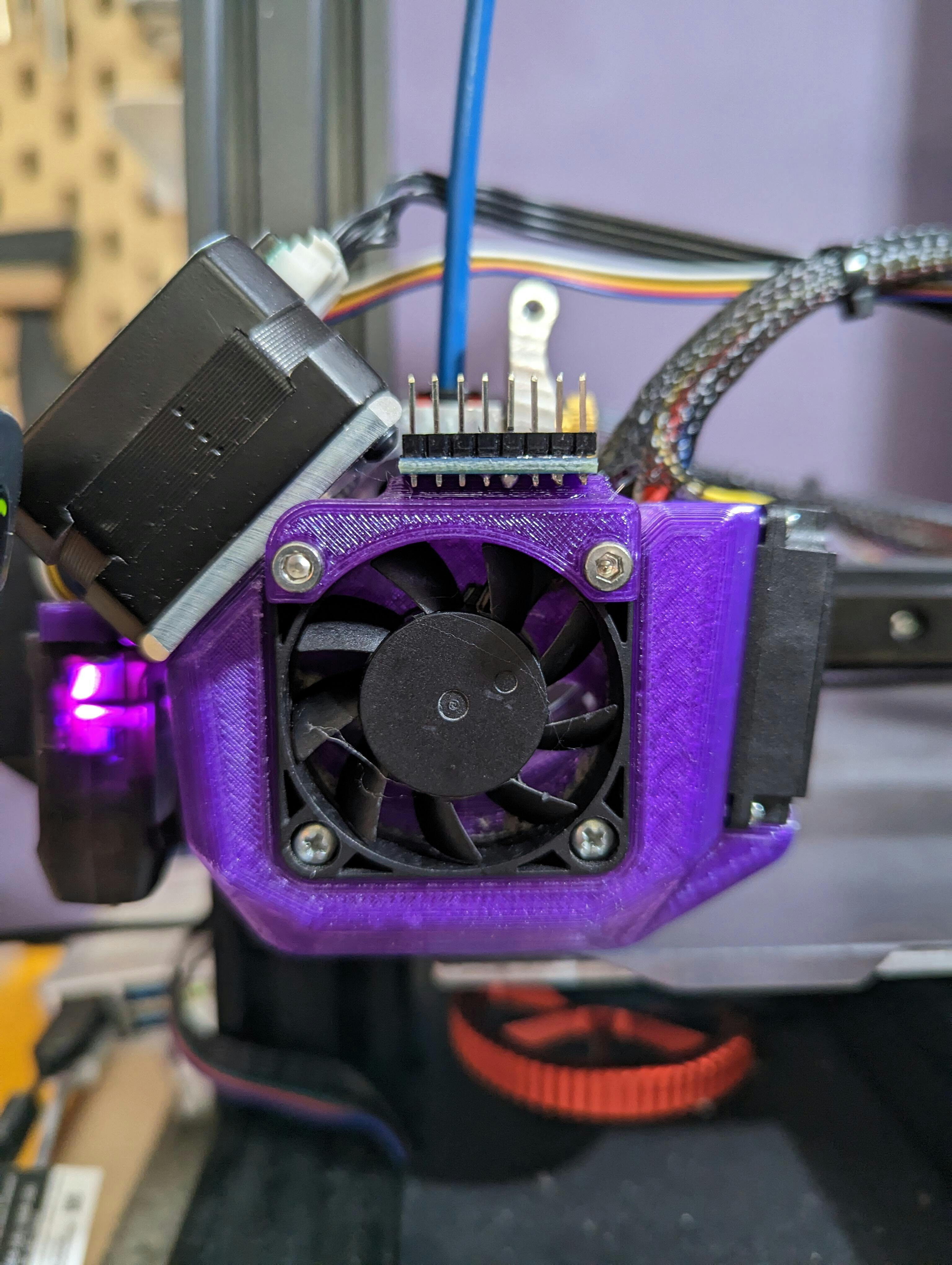

Installation on my Ender3 V2 went very smoothly following the provided instructions. I printed an adapter for my ADXL345 accelerometer and CR-Touch, and installed those as well. After calibration and testing with klipper, I am extremely pleased with the results and print quality I am seeing.
