FlowTech™ - CHT High Flow Nozzles

Original price $ 22.75 - Original price $ 22.75
Original price
$ 22.75
$ 22.75 - $ 22.75
Current price $ 22.75
SKU

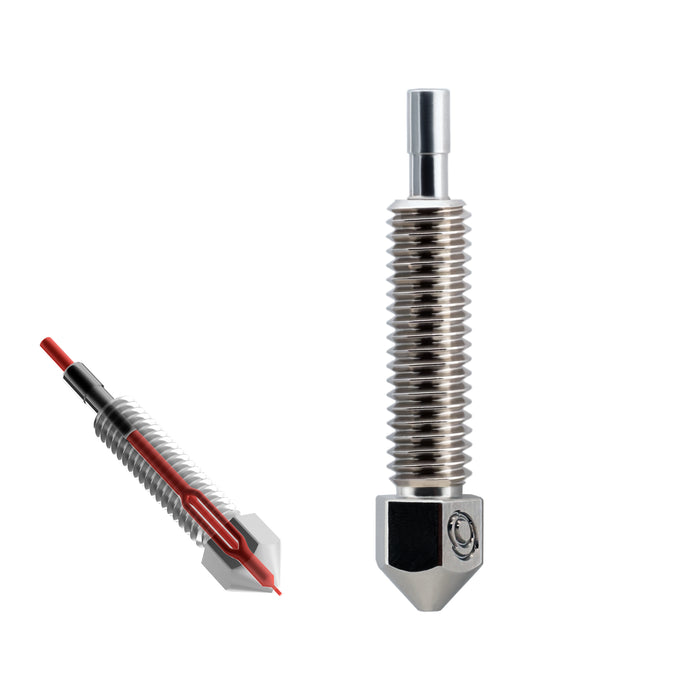

FlowTech™ CHT High Flow Nozzle

Microswiss and Bondtech have partnered to bring the High Flow nozzle to the FlowTech ecosystem. This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate.

  • Brass body
    • Plated with Non-stick Composite Additive TwinClad® XT Plating

  • High Flow CHT
    • The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
  • Better layer adhesion
    • More uniform layer deposition is achieved by splitting the filament  flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers

  • Compatible with
    • The FlowTech CHT nozzle is compatible with all FlowTech hotend models

  • Orifice size available: .4mm, .6mm, .8mm, 1.0mm

Made in Sweden by Bondtech
Assembled in USA by Microswiss

Fits
      Choose a Nozzle Size

      Customer Reviews

      Based on 17 reviews
      88%
      (15)
      0%
      (0)
      0%
      (0)
      6%
      (1)
      6%
      (1)
      A
      Anonymous
      Wears very fast

      I had great results printing with this nozzle, however after 35 hours of printing pla the nozzle blew out.

      B
      Bruce Layne
      Very High Quality, And A Wide Variety Of Nozzles

      The regular Microswiss FlowTech nozzles have good flow rates and the CHT nozzles print even faster. The Microswiss quality is excellent and I love being able to cold swap FlowTech nozzles in one minute using only a 7 mm nut driver, which is way faster and easier than the stock nozzle. It's so fast and easy that I can now swap nozzles for optimal performance on each print job, making it easier to use my printer with a 0.4 mm nozzle for fine detailed work on one job, print abrasive carbon fiber filament on the next job with a 0.6 mm hardened steel CM2 nozzle, then print a huge object quickly on the third job with a 1.0 mm CHT high flow nozzle.

      C
      Cody Martin

      Great add on nozzle for when you want to print larger objects faster but gain the benefit of better layer bonding and flow rates! I recommend these over Revo now due to their simplicity and quality over E3D’s nozzle system.

      c
      cristian luque

      Me sorprendió las velocidades que se pueden alcanzar, facilmente disminuyó mas de la mitad del tiempo de impresion, no lo llevo al limite, con 40 mm3 es suficiente, suelo imprimir abs, altamente recomendado

      P
      Patrick Curley
      Great nozzle

      My prints come out amazing!
